# AlvCapExch

Model number
0429

Models two compartments, fluid and air, for a soluble gas passively exchanging between the volumes, V1 liquid, V2 air, forming a closed system. Assumes constant volumes, dry air. Simple model of alveolar-capillary gas exchange.

## Description

``` Simple two compartment model of gas exchange between fluid and gas compartments. Emphasis
is on mass exchange as the mass flux of gas across a phase boundary can be confusing.
For this model the compartment volumes and temperature are held constant and the system is
closed so that the total mass in the system is constant.

Amount of CO2 in water compartment = QCO2cap (mol) = CCO2 (mmoles/ml) * VolWater (ml)
Amount of CO2 in air compartment   = QCO2air (mol) = pCO2 (mmHg) * VolAir (ml)
*(pCO2/760)/(((37+273)/273)*22400 ml/mol)
Example for water with pCO2 of 50 mmHg: Amount Q for CO2 in H2O at 37C (or 310K) =
= AlphaCO2w37 (ml/ml)* (50/760) / (((37+273)/273)*22400)

STP O2 and CO2 Solubility Equations from Christmas 2017 Eq 4a and 4b:
Christmas KM and Bassingthwaighte JB. Equations for O2 and CO2 solubilities
in saline and plasma: Combining temperature and density dependences.
J Appl Physiol 122: 1313-1320, 2017.

```

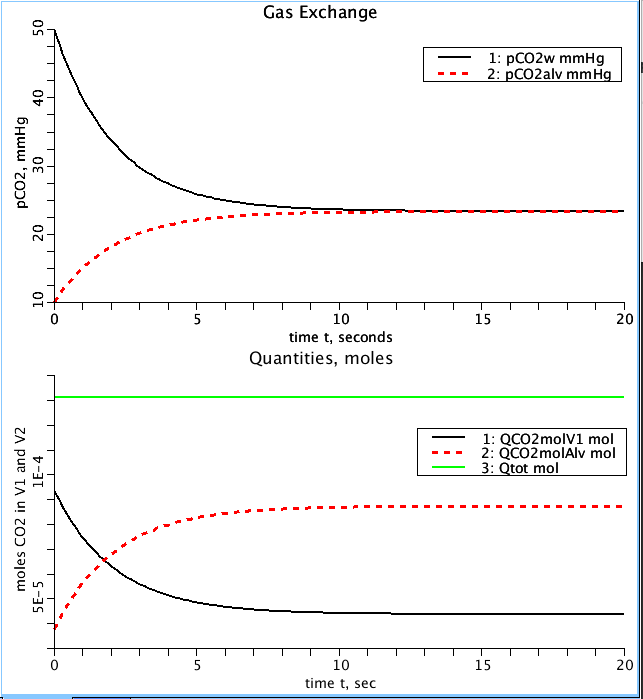

Figure: Upper panel: Partial pressure of CO2 (pCO2) drives the exchange between the two compartments. Black line is pCO2 in the water (pCO2w) compartment and the dashed red line is the pCO2 in the alveolar gas compartment (pCO2alv). Lower panel: the amount of CO2 gas, in moles, in each compartment and total (Qtot). Initially, the water compartment has the larger quantity of CO2 (QCO2molV1), but as the partial pressures equilibrate, CO2 moves into the alveolar gas compartment until, at equilbrium, the majority of CO2 is in it. Note that the total amount of CO2 in the system remains unchanged (green line).

## Equations

The equations for this model may be viewed by running the JSim model applet and clicking on the Source tab at the bottom left of JSim's Run Time graphical user interface. The equations are written in JSim's Mathematical Modeling Language (MML). See the Introduction to MML and the MML Reference Manual. Additional documentation for MML can be found by using the search option at the Physiome home page.

References
``` Christmas KM and Bassingthwaighte JB. Equations for O2 and CO2 solubilities in saline and plasma:
Combining temperature and density dependences. J Appl Physiol 122: 1313-1320, 2017.

Dash RK and Bassingthwaighte JB. Erratum to: Blood HbO2 and HbCO2 dissociation curves at varied O2, CO2, pH,
2,3-DPG and Temperature Levels. Ann Biomed Eng 38(4): 1683-1701, DOI: 10.1007/s10439-010-9948-y PMC2862600, 2010

Hills BA, Gas Transfer in the Lung (Book), Cambridge University Press, London, 1974

Comroe J, Lung (Book), YEAR BOOK MEDICAL, Second Edition edition (1965)

https://www.imagwiki.nibib.nih.gov/physiome/Models/tutorial```
Key terms
gas exchange
Compartment model
ODE
carbon dioxide
oxygen
gas solubilty
mass balance
alveolus
lung
Cardiac grid
tutorial
