Beard2005_Mito_OxidatPhosphor

Model number
0077



A model for the mitochondrial respiratory chain that appropriately balances mass, charge, and free energy transduction and analyzed based on a previously published set of data measured on isolated cardiac mitochondria.

Description

   A computational model for the mitochondrial respiratory chain that appropriately
   balances mass, charge, and free energy transduction is introduced and analyzed based
   on a previously published set of data measured on isolated cardiac mitochondria.
   The basic components included in the model are the reactions at complexes I, III, and
   IV of the electron transport system, ATP synthesis at F1F0 ATPase, substrate
   transporters including adenine nucleotide translocase and the phosphate\hydrogen
   co-transporter, and cation fluxes across the inner membrane including fluxes through
   the K+/H+ antiporter and passive H+ and K+ permeation. Estimation of 16 adjustable
   parameter values is based on fitting model simulations to nine independent data
   curves. The identified model is further validated by comparison to additional datasets m
   easured from mitochondria isolated from rat heart and liver and observed at low
   oxygen concentration. To obtain reasonable fits to the available data, it is necessary
   to incorporate inorganic-phosphate-dependent activation of the dehydrogenase activity
   and the electron transport system. Specifically, it is shown that a model incorporating
   phosphate-dependent activation of complex III is able to reasonably reproduce the
   observed data. The resulting validated and verified model provides a foundation for
   building larger and more complex systems models and investigating complex physiological
   and pathophysiological interactions in cardiac energetics.

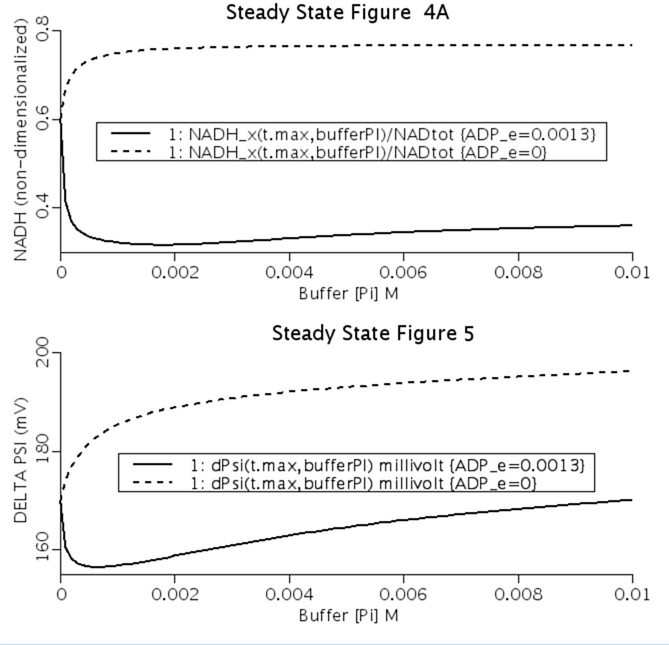

Figure 1

Equations

The equations for this model may be viewed by running the JSim model applet and clicking on the Source tab at the bottom left of JSim's Run Time graphical user interface. The equations are written in JSim's Mathematical Modeling Language (MML). See the Introduction to MML and the MML Reference Manual. Additional documentation for MML can be found by using the search option at the Physiome home page.

Download JSim model project file

Help running a JSim model.

CellMl code for the model is available at:
CellMl model repository: Beard 2005

References

Beard DA, A Biophysical Model of the Mitochondrial Respiratory System and Oxidative Phosphorylation. PLos Comput Biol 1(4):e36, 2005

Beard DA (2006) Correction: A Biophysical Model of the Mitochondrial Respiratory System and Oxidative Phosphorylation. PLoS Comput Biol 2(1): e8. doi:10.1371/journal.pcbi.002000

Key terms
oxidative phosphorylation
mitochondria
energy metabolism
Cellular and Molecular Physiology
Cell metabolism models
cell respiration
Publication
biochemical systems
PMID16163394
