SIMVOL

Model number
0251



Two organ model recirculating system with shunt. Has separate three region compartmental exchange (CTEX) and blood tissue exchange (BTEX).

Description

   Two organ model with with each organ broken into two parts: a three compartment organ
   tissue exchange (CTEX) and a three region axially distributed blood tissue exchange (BTEX).
   The CTEX is modeled using n number of serial stirred tanks. A shunt is used to change
   the distribution of the recirculating flow within the system. The effect of material clearance
   from organs can be calculated. See notes page for some simple examples that illustrate the model.

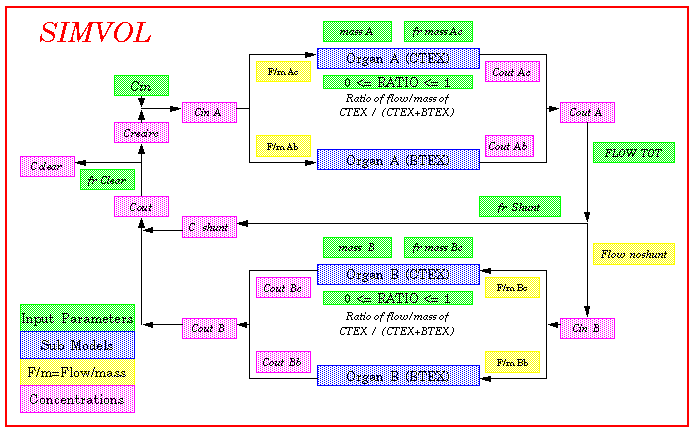

fig 1

Equations

The equations for this model may be viewed by running the JSim model applet and clicking on the Source tab at the bottom left of JSim's Run Time graphical user interface. The equations are written in JSim's Mathematical Modeling Language (MML). See the Introduction to MML and the MML Reference Manual. Additional documentation for MML can be found by using the search option at the Physiome home page.

Download JSim model project file



- Help running a JSim model.

Download Project393.34 KB
References
   Bassingthwaighte JB, Wang CY, and Chan IS. Blood-tissue exchange via transport
   and transformation by endothelial cells. Circ Res 65: 997-1020, 1989.

   Bassingthwaighte JB, Chan IS, and Wang CY. Computationally efficient algorithms
   for capillary convection-permeation-diffusion models for blood-tissue exchange. Ann Biomed
   Eng 20: 687-725, 1992.

   Crone C. The permeability of capillaries in various organs as determined by the use of
   the 'indicator diffusion' method. Acta Physiol Scand 58: 292-305, 1963

   Li Z, Yipintsoi T, and Bassingthwaighte JB. Nonlinear model for capillary-tissue
   oxygen transport and metabolism. Ann Biomed Eng 25: 604-619, 1997.

   Poulain CA, Finlayson BA, and Bassingthwaighte JB. Efficient numerical methods
   for nonlinear facilitated transport and exchange in a blood-tissue exchange unit. Ann Biomed Eng
   25: 547-564, 1997.
Related Models

Tracers in physiological systems modeling. Includes simple examples using the SIMVOL model.

Key terms
SIMVOL
BTEX30
CTEX30
Recirculating
three region
whole organ
clearance
tracer
PDE
