Comparison of 1-sided and 2 sided Michaelis-Menten transporters in a two compartment model with flow.

Description

fig 1

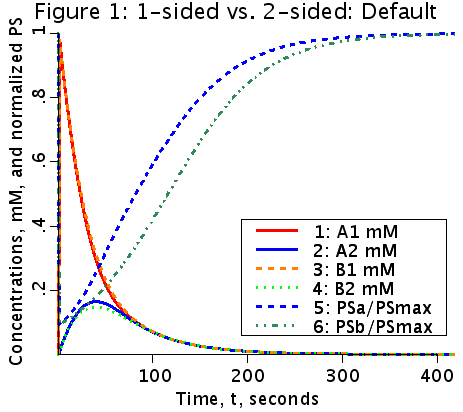

Figure 1: Concentrations of A1, A2, B1, and B2 are plotted as functions of time. The normalized values of PS (PSa/PSmax and PSb/PSmax) are also plotted as functions of time.

Two types of a saturable Michaelis-Menten transporter are considered in this two compartment model with flow--a one sided transporter for solute A and a two-sided transporter for solute B. The model for solute A is cis- side driven. Concentration of A in V1, A1, determines the fractional saturation, PSa/PSmax, where PSmax is Vmax/Km, and PSa = PSmax/(1 + A1/Km). The model for solute B is cis-trans driven. Concentration of B in both V1 and V2, B1 and B2 respectively, determine the fractional saturation, where PSmax is Vmax/Km and PSb = PSmax/(1 + B1/Km + B2/Km).

Equations



     One sided Michaelis-Menten Transporter

e0

e1



     Ordinary Differential Equations

e2

e3



     Initial Conditions

e4

e5



     Two sided Michaelis-Menten Transporter

e6

e7



     Ordinary Differential Equations

e8

e9



     Initial Conditions

e10

e11



The equations for this model may be viewed by running the JSim model applet and clicking on the Source tab at the bottom left of JSim's Run Time graphical user interface. The equations are written in JSim's Mathematical Modeling Language (MML). See the Introduction to MML and the MML Reference Manual. Additional documentation for MML can be found by using the search option at the Physiome home page.
