A model of baroreceptor transduction of blood pressure


A model of baroreceptor transduction of blood pressure consisting of
   i.)   A linear viscoelastic description of arterial wall strain taken from [1]
   ii.)  A linear viscoelastic coupling of arterial wall strain to nerve ending
         strain from [1]
   iii.) A Hodgkin-Huxley type neuron model consisting of voltage gated sodium and
         potassium channels with kinetics parameterized by [2], a mechanosensitive
         ion channel and a sodium leakage current.

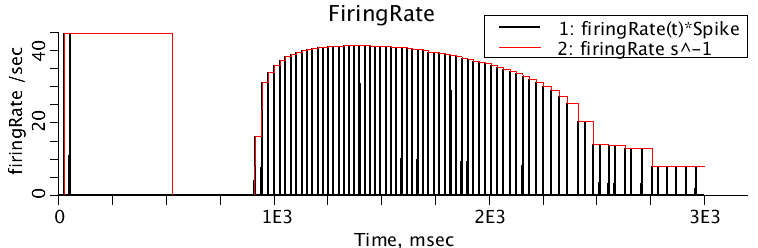

   iv.)  The action potential peaks are detected and an instantaneous firing rate is





The equations for this model may be viewed by running the JSim model applet and clicking on the Source tab at the bottom left of JSim's Run Time graphical user interface. The equations are written in JSim's Mathematical Modeling Language (MML). See the Introduction to MML and the MML Reference Manual. Additional documentation for MML can be found by using the search option at the Physiome home page.

Download JSim model project file

Help running a JSim model.

   1. A. Mahdi, J. Sturdy, J. Ottesen, M. Olufsen. _Modeling the afferent dynamics of the baroreflex control system._
       PLoS Computational Biology 9(12).
   2. Schild JH, Clark JW, Hay M, Mendelowitz D, Andresen MC, et al.
       _A- and c-type rat nodose sensory neurons: model interpretations of dynamic discharge characteristics._
     J Neurophysiol
Key terms
blood pressure
action potential
firing rate
