Simple one compartment model with pressure source and constant compliance.
This simple model demonstrates a single compartment with compliance. The compartment changes its volume as pressure source is applied. Flow resistance is set to zero and initial resting volume is set to a user defined value. This is an introductory demonstration of JSim environment and basic notions in airways dynamics. The pressure-volume relationship is given by simple equation. The model can be considered as a ventilator. P is the driving pressure, P0 is the background pressure, Com is the compliance, and V and Vr are instantaneous volume and volume at rest, respectively. This model demonstrates the deficiency of the widely used simple pressure-volume relationship that is defined by the first equation.

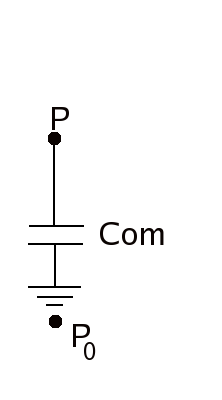

Figure Legend: P: Pressure (forcing), P0: ambient (background) Pressure, Com: Compliance
The governing equations are
where V is the volume, Vr is the volume when P=P0, and Flow is the change in volume.
The equations for this model may be viewed by running the JSim model applet and clicking on the Source tab at the bottom left of JSim's Run Time graphical user interface. The equations are written in JSim's Mathematical Modeling Language (MML). See the Introduction to MML and the MML Reference Manual. Additional documentation for MML can be found by using the search option at the Physiome home page.
