This model represents a bifurcating compliant bronchiole with two compliant alveoli.

Description

This model represents a bifurcating compliant bronchiole with two compliant alveoli.
  The resistance offered by bronchial wall to the flow of air is represented by the resistor
  in the electrical circuit. The compliance of the bronchiole is represented by the capacitor.
  All three bronchi have separate compliances which are represented by three individual
  capacitors. The alveolar sac compliance is repsented by a capcitor. The alveolar sac changes
  its volume as a function of inlet flow or pressure.

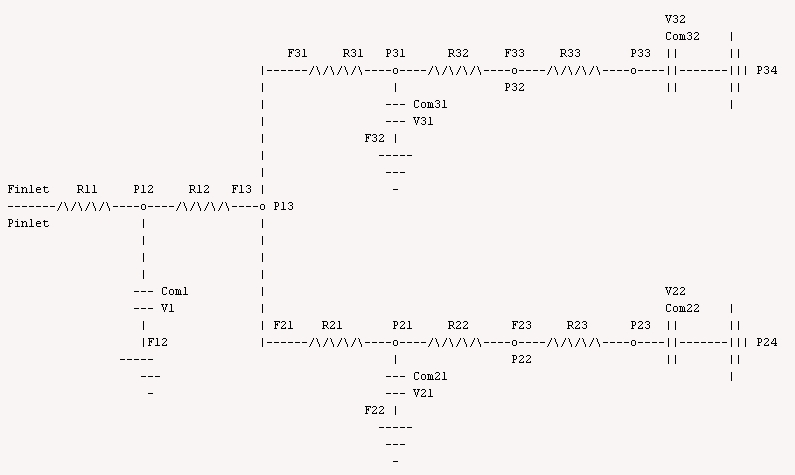

Compliant_bifurcating pic1

Equations

The equations for this model may be viewed by running the JSim model applet and clicking on the Source tab at the bottom left of JSim's Run Time graphical user interface. The equations are written in JSim's Mathematical Modeling Language (MML). See the Introduction to MML and the MML Reference Manual. Additional documentation for MML can be found by using the search option at the Physiome home page.

Download JSim model project file

Help running a JSim model.

References
   K. R. Lutchen and G. M. Saidel, Estimation of mechanical parameters in multicompartment
   models applied to normal and obstructed lungs during tidal breathing,
   IEEE Trans. Biomed. Eng., vol. BME-33, no. 9, pp. 878-887, Sept. 1986.

   Biomechanics by Y.C. Fung (Text Book)
