A mathematical model of a rabbit sinoatrial node cell. Demir, S., J. Clark, C. Murphey, and W. Giles. Am. J. Physiol. Cell Physiol. 266: C832-C852, 1994.

Description

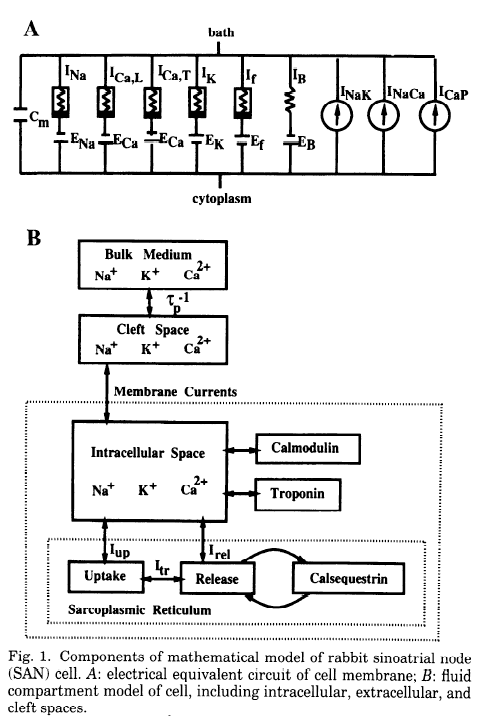

fig1

A mathematical model for the electrophysiological
responses of a rabbit sinoatrial node cell that is
based on whole cell recordings from enzymatically
isolated single pacemaker cells at 37 degrees C has
been developed. The ion channels, Na(+)-K+ and Ca2+
pumps, and Na+-Ca2+ exchanger in the surface membrane
(sarcolemma) are described using equations for these
known currents in mammalian pacemaker cells.  The
extracellular environment is treated as a diffusion-
limited space, and the myoplasm contains Ca2+-binding
proteins (calmodulin and troponin). Original features
of this model include 1) new equations for the hyper-
polarization-activated inward current, 2) assessment
of the role of the transient-type Ca2+ current during
pacemaker depolarization, 3) inclusion of an Na+
current based on recent experimental data, and 4)
demonstration of the possible influence of pump and
exchanger currents and background currents on the
pacemaker rate. This model provides acceptable fits
to voltage-clamp and action potential data and can be
used to seek biophysically based explanations of the
electrophysiological activity in the rabbit sinoatrial
node cell.

   CellML models are found at:
models.cellml.org/cellml
The nature of CellML combined with the program trans-
lating CellML (a variant of xml) into JSim's MML gives
a surfeit of parentheses, and unfortunately loses any
Commments and definitions that may have been in CellML.

Equations

The equations for this model may be viewed by running the JSim model applet and clicking on the Source tab at the bottom left of JSim's Run Time graphical user interface. The equations are written in JSim's Mathematical Modeling Language (MML). See the Introduction to MML and the MML Reference Manual. Additional documentation for MML can be found by using the search option at the Physiome home page.

Download JSim model project file



Help running a JSim model.

References

 Demir, S., J. Clark, C. Murphey, and W. Giles. A mathematical model
 of a rabbit sinoatrial node cell.  Am. J. Physiol. Cell Physiol.
 266: C832-C852, 1994.

Demir, Semahat S., John W. Clark, and Wayne R.Giles. Parasympathetic modulation of sinoatrial node pacemaker activity in rabbit heart: a unifying model. Am J Physiol Heart Circ 276: H2221-H2244, 1999.

Pandit SV, Clark RB, Giles WR, and Demir SS. A mathematical model of action potential heterogeneity in adult rat left ventricular myocytes. Biophys J 81: 3029-3051, 2001. Kurata, Yasutaka, Ichiro Hisatome, Sunao Imanishi,and Toshishige Shibamoto. Dynamical description of sinoatrial node pacemaking: improved mathematical model for primary pacemaker cell. Am J Physiol Heart Circ Physiol 283: H2074-H2101, 2002.
