Model number
0153



Highly-integrated human, a closed loop cardiopulmonary model composed of a four-chamber varying-elastance heart, a pericardium, a systemic circ, a pulmonary circ, airways mechanics, baroreceptors, gas exch, blood gas handling, coronary circ, and peripheral chemoreceptors.

Description

 The model simulates physiological features such as the arterial blood pressure waveform,
 end-diastolic left ventricular volume, coronary capillary flow, pleural pressure, and
 arterial oxygen concentration.

 This model is a reduced form of the Highly-integrated_human_with_interventions model.
 Only the sections of code for simulating interventions and injuries (aka Physiological Changes)
 have been removed from this parent model.

 The JSim project file allows the user to simulate certain interventions by changing model
 parameters in the “Inputs” page. For example, the parameter for pulmonary valve resistance (Rpuv)
 can be increased to simulate pulmonary valve stenosis.

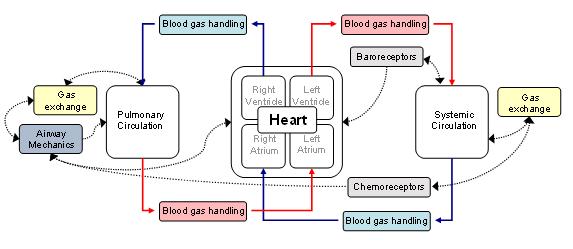

fig 1

Equations

The equations for this model may be viewed by running the JSim model applet and clicking on the Source tab at the bottom left of JSim's Run Time graphical user interface. The equations are written in JSim's Mathematical Modeling Language (MML). See the Introduction to MML and the MML Reference Manual. Additional documentation for MML can be found by using the search option at the Physiome home page.

Download JSim model project file



Help running a JSim model.

References
 Athanasiades A, Ghorbel F, Clark JW, Niranjan SC, Olansen J,
 Zwischenberger JB, Bidani A.  Energy analysis of a nonlinear
 model of the normal human lung.  Journal of Biological
 Systems. 8(2): 115-139, 2000.

 Brandenburg, Robert O. Cardiology: fundamentals and practice.
 Yearbook medical publishers, 1987. p. 49.

 Chung DC, Niranjan SC, Clark Jr. JW, Bidani A, Johnston WE,
 Zwischenberger JB, Traber DL. A dynamic model of ventricular
 interaction and pericardial influence.  Am J Phsiol Heart
 Circ Physiol. 272: H2942-H2962, 1997.

 Duffin J, Mohan RM, Vasiliou P, Stephenson R, Mahamed S. A
 model of the chemoreflex control of breathing in humans: model
 parameters measurement. Respiration Physiology 120:13-26, 2000.

 Golden JF, Clark JW, Stevens PM. Mathematical Modeling of
 Pulmonary Airway Dynamics.  IEEE Transactions on Biomedical
 Engineering. 20(6): 397-404, 1973.

 Heldt T, Shim EB, Kamm RD, Mark RG. Computational modeling of
 cardiovascular response to orthostatic stress.  Journal of
 Applied Physiology. 92: 1239-1254, 2002.

 Kezdi P, and Geller E. Transfer characteristics of the
 carotid sinus pressure control system. In: Baroreceptors and
 Hypertension, Kezdi, P. (ed.) Pergamon, Dayton, OH, 1967,
 pp. 31-40.

 Liu CH, Niranjan SC, Clark JW, San KY, Zwischenberger JB,
 Bidani A.  Airway mechanics, gas exchange, and blood flow
 in a nonlinear model of the normal human lung.  Journal of
 Applied Physiology. 84(4): 1447-1469.

 Lu K, Clark JW, Ghorbel FH, Ware DL, Bidani A.
 A human cardiopulmonary system model applied to the analysis
 of the Valsalva maneuver.  Am J Physiol Heart Circ Physiol.
 281: H2661-H2679, 2001.

 Lu K, Clark JW, Ghorbel FH, Ware DL, Zwischenberger JB,
 Bidani A.  Whole-body gas exchange in human predicted by a
 cardiopulmonary model.  Cardiovascular Engineering: An
 International Journal. 3(1):1-19, 2002.

 Rideout VC. Mathematical computer modeling of physiological
 systems. Englewood Cliffs, NJ: Prentice Hall, 1991, 261 pp.

 Sun Y, Beshara M, Lucariello RJ, Chiaramida SA.  A
 comprehensive model for right-left heart interaction under the
 influence of pericardium and baroreflex.  Am J Physiol Heart
 Circ Physiol. 272: H1499-H1515, 1997.

 Woodbury, JW.  Body acid-base and its regulation.  In:
 Physiology and Biophysics Volume II: Circulation, Respiration,
 and Fluid Balance.  Ruch, TC and Patton, HD (eds.) W.B.
 Saunders Company. 1974. 558 pp.

 Zinemanas D, Beyar R, Sideman S.  Relating mechanics, blood
 flow and mass transport in the cardiac muscle.  Int. J. Heat
 Mass Transfer.  37(suppl. 1) 191-205, 1994.
Key terms
cardiovascular
pulmonary
cardiopulmonary
gas exchange
blood gas handling
pericardium
heart
systemic circulation
pulmonary circulation
coronary circulation
lumped parameter
baroreceptor
chemoreceptor
oxygen
carbon dioxide
bicarbonate
carboxyhemoglobin
pH
nitrogen
airway mechanics
integrated physiology
Integrative
Virtual Soldier
Highly-integrated human
