Simple compartmental model including soluble gas transport in the alveoli, transfer between the bronchial circulation and the conducting airways, and metabolism.

Description

  This is a simple model of the pulmonary system where the lung is subdivided into
  compartments representing air spaces: dead space, peripheral bronchial tract, and
  the alveolar space; blood volumes: upper airway mucus, pulmonary capillary, systemic
  blood flow; and tissue space: whole body excluding the lungs. The upper airway mucus
  layer resides along the peripheral bronchial tract and has a continuous blood flow
  QM which effectively communicates with the gas in the bronchial tract.

fig 1

Equations

  • Ventilation

The alveolar compartment changes volume with ventilation. Prior to steady state, the lung undergoes tidal breathing, represented by a sinusoid

e0
After a pre-determined number of breaths, a secondary maneuver is performed: prolonged exhale or rebreathing. For a prolonged exhalation maneuver, the lungs are brought quickly to total lung capacity (TLC), then drained at a constant rate to the residual volume (RV).

e1

In a rebreathing maneuver, an external bag is attached and the subjects breaths a number of breaths, generally 8, directly into and out of a bag.

e2

Compartmental Definitions The following compartments use conservation of mass equations to follow the concentration of the soluble gas tracer.

  • Dead Space

e3

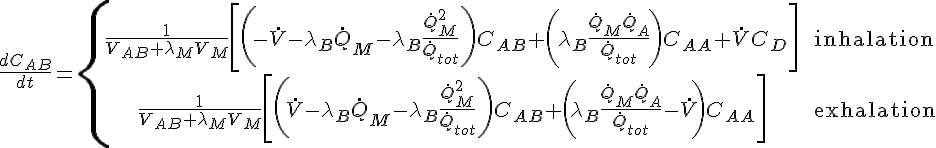

  • Peripheral Bronchial Compartment

e4

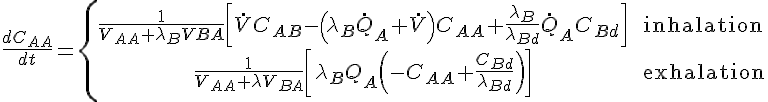

  • Alveolar Compartment

e5

  • Body Compartment

e6

  • Rebreathing Bag

e7

Download JSim model project file



Help running a JSim model.

References
  Kumagai S, and Matsunaga I. A lung model describing uptake of organic solvents and
  roles of mucosal blood flow and metabolism in the bronchioles. Inhal Toxicol 12: 491-510, 2000.
