Model number


A delay-differential equation model of the feedback/feedforward-controlled hypothalamus-pituitary-adrenal axis in humans. Lenbury and Pornsawad, 2005 paper.


 (abstract) The present work develops and analyses a model
system of delay-differential equations which describes the core dynamics of the
stress-responsive hypothalamus-pituitary-adrenal axis. This neuroendocrine ensemble
exhibits prominent pulsatile secretory patterns governed by nonlinear and
time-delayed feedforward and feedback signal interchanges. Formulation and
subsequent bifurcation analysis of the model provide a qualitative and mathematical
frame work for a better understanding of the delayed responsive mechanisms as well
as the dynamic variations in different pathological situations.

Model converted from original cellML and updated to reproduce Figure 3 of Lenbury and Pornsawad, 2005 paper.

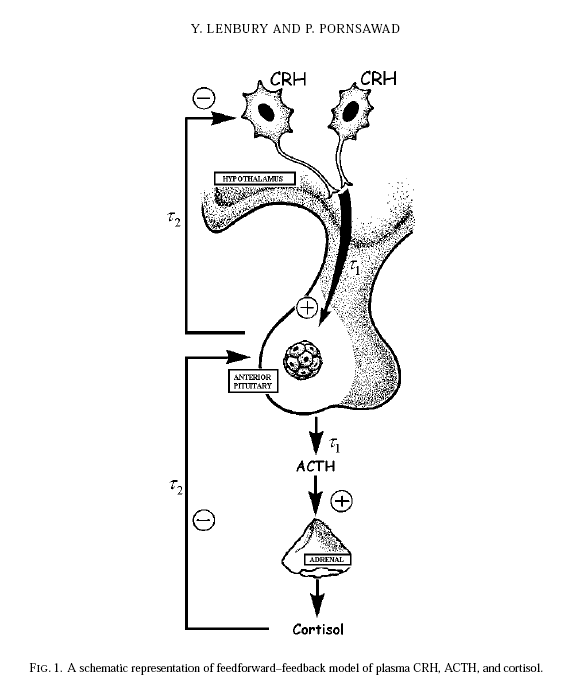

fig 1


The equations for this model may be viewed by running the JSim model applet and clicking on the Source tab at the bottom left of JSim's Run Time graphical user interface. The equations are written in JSim's Mathematical Modeling Language (MML). See the Introduction to MML and the MML Reference Manual. Additional documentation for MML can be found by using the search option at the Physiome home page.

Download JSim model project file


Help running a JSim model.

 (Primary) Lenbury, Yongwimon and Pornsawad, Pornsarp;  A delay-differential equation
 model of the feedback-controlled hypothalamus-pituitary-adrenal axis in humans.
 Mathematical Medicine and Biology 22: 15-33,2005,pubmed:15716298
