Model number


A closed loop cardiopulmonary model composed of a four-chamber varying-elastance heart, a pericardium, a systemic circulation, a pulmonary circulation, and a coronary circulation.


 This is a closed loop cardiopulmonary system composed of a four-chamber varying-elastance heart,
 a pericardium, a systemic circulation, a coronary circulation, and a pulmonary circulation.

 The model simulates physiological features such as the arterial blood pressure waveform,
 end-diastolic left ventricular volume, and coronary capillary flow. This model is a reduced
 form of the Highly-integrated_human_with_interventions model. The code for simulation of
 interventions and injuries (aka Physiological Changes), peripheral chemoreceptors, blood gas
 handling, gas exchange, airway mechanics, and baroreceptors has been removed from the parent
 model to create the present system.

 The JSim project file allows the user to simulate certain interventions by changing model
 parameters in the “Inputs” page. For example, the parameter for pulmonary valve resistance (Rpuv)
 can be increased to simulate pulmonary valve stenosis.

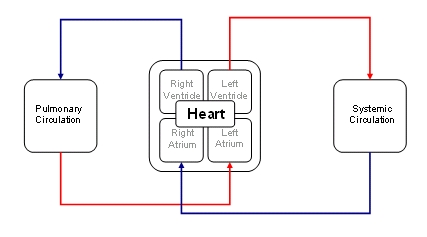

fig 1


The equations for this model may be viewed by running the JSim model applet and clicking on the Source tab at the bottom left of JSim's Run Time graphical user interface. The equations are written in JSim's Mathematical Modeling Language (MML). See the Introduction to MML and the MML Reference Manual. Additional documentation for MML can be found by using the search option at the Physiome home page.

Download JSim model project file


Help running a JSim model.

 Brandenburg, Robert O. Cardiology: fundamentals and practice.
 Yearbook medical publishers, 1987. p. 49.

 Chung DC, Niranjan SC, Clark Jr. JW, Bidani A, Johnston WE,
 Zwischenberger JB, Traber DL. A dynamic model of ventricular
 interaction and pericardial influence.  Am J Phsiol Heart
 Circ Physiol. 272: H2942-H2962, 1997.

 Golden JF, Clark JW, Stevens PM. Mathematical Modeling of
 Pulmonary Airway Dynamics.  IEEE Transactions on Biomedical
 Engineering. 20(6): 397-404, 1973.
 Heldt T, Shim EB, Kamm RD, Mark RG. Computational modeling of
 cardiovascular response to orthostatic stress.  Journal of
 Applied Physiology. 92: 1239-1254, 2002.

 Lu K, Clark JW, Ghorbel FH, Ware DL, Bidani A.
 A human cardiopulmonary system model applied to the analysis
 of the Valsalva maneuver.  Am J Physiol Heart Circ Physiol.
 281: H2661-H2679, 2001.

 Rideout VC. Mathematical computer modeling of physiological
 systems. Englewood Cliffs, NJ: Prentice Hall, 1991, 261 pp.

 Sun Y, Beshara M, Lucariello RJ, Chiaramida SA.  A
 comprehensive model for right-left heart interaction under the
 influence of pericardium and baroreflex.  Am J Physiol Heart
 Circ Physiol. 272: H1499-H1515, 1997.

 Zinemanas D, Beyar R, Sideman S.  Relating mechanics, blood
 flow and mass transport in the cardiac muscle.  Int. J. Heat
 Mass Transfer.  37(suppl. 1) 191-205, 1994.


Key terms
systemic circulation
pulmonary circulation
coronary circulation
lumped parameter
integrated physiology
blood pressure
