PanitchobPlacentaComp2015

Model number
0311



(Matlab) Integrated compartmental model of amino acid transport in the placenta. Model describes amino acid interactions between three placental compartments, which are regulated by three transport mechanisms.

Description

The model describes the complex interactions of four amino acid groups in three
compartments (maternal, syncytiotrophoblast, and fetal). The amino acids are regulated
between these compartments via transport proteins, which have three different mechanisms
(accumulative, exchange, and facilitated transport). The compartmental model incorporates
initial amino acid levels in each compartment, and blood flow inputs in the maternal
and fetal compartments.

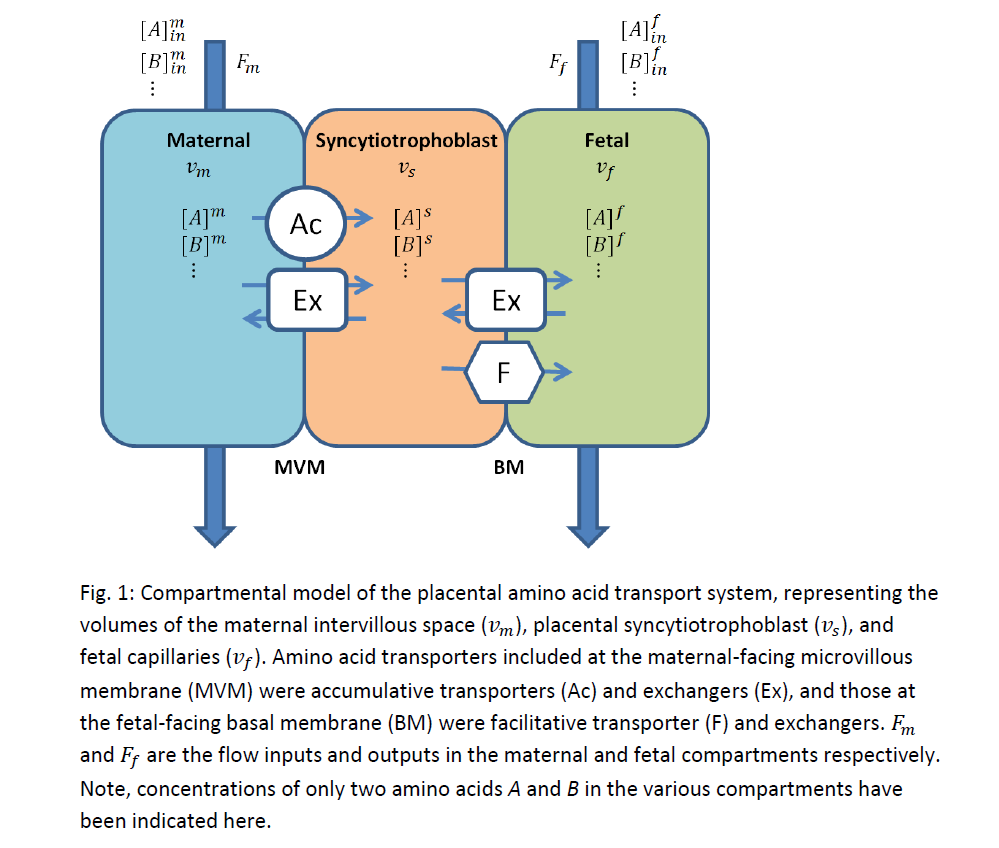

mvm bm fig1

Equations

The equations for this model may be viewed by running the JSim model applet and clicking on the Source tab at the bottom left of JSim's Run Time graphical user interface. The equations are written in JSim's Mathematical Modeling Language (MML). See the Introduction to MML and the MML Reference Manual. Additional documentation for MML can be found by using the search option at the Physiome home page.

Download JSim model project file

Help running a JSim model.

This model is written in Matlab. The main program file is 'placentarun.m'. Please down load the following zip file to run model in Matlab:

References
  • (Primary) Panitchob, N., Widdows, K.L., Crocker, I.P., Johnstone, E.D., Please, C.P., Sibley, C.P., Glazier, J.D., Lewis, R.M. & Sengers, B.G. 2016, Computational modelling of placental amino acid transfer as an integrated system, BBA-Biomembranes, (doi:10.1016/j.bbamem.2016.03.028).
  • Souba, W.W. & Pacitti, A.J. 1992, Review: How Amino Acids Get Into Cells: Mechanisms, Models, Menus, and Mediators. Journal of Parenteral and Enteral Nutrition 16, 569-578. (doi:10.1177/0148607192016006569).
  • Pradhan, R.K., Vinnakota, K.C., Beard, D.A. & Dash, R.K. 2013, Chapter 5 - Carrier-Mediated Transport Through Biomembranes. In Transport in Biological Media (eds. S.M. Becker & A.V. Kuznetsov), pp. 181-212. Boston, Elsevier.
  • Sengers, B.G., Please, C.P. & Lewis, R.M. 2010 Computational modelling of amino acid transfer interactions in the placenta. Experimental physiology 95, 829-840. (doi:10.1113/expphysiol.2010.052902).
  • Mayhew, T.M. 2009 A stereological perspective on placental morphology in normal and complicated pregnancies. Journal of Anatomy 215, 77-90. (doi:10.1111/j.1469-7580.2008.00994.x).
Key terms
Placenta
compartmental model
transporter
membrane transport
matlab
