Model number


A model of fibroblast electophysiology developed by Sachse et al. 2008. JSim v1.1


 This model of fibroblast electrophysiology, based on data from whole-cell patch clamp and
 polymerase chain reaction (PCR) studies, is taken from the paper by Sachse et al. (Ann Biomed Eng, 2008).
 An inward rectifying current, IKir, and a time and voltage dependent outward current, IShkr, are the
 main determinants of the fibroblast's voltage-current relationship. The model additionally includes
 an unspecified background current, Ib, and a stimulus current, Istim. The inward current
 is modeled here as nearly instantaneous and is modulated by the external K+ concentration.
 Measurements of the outward current on the other hand show delayed rectifier and slow
 inactivation properties. Therefore a Markovian model of delayed rectifier currents is used.
 The background current was described as in previous ohmic models of kidney and cardiac fibroblasts.
 The set of equations used in this model are given below.

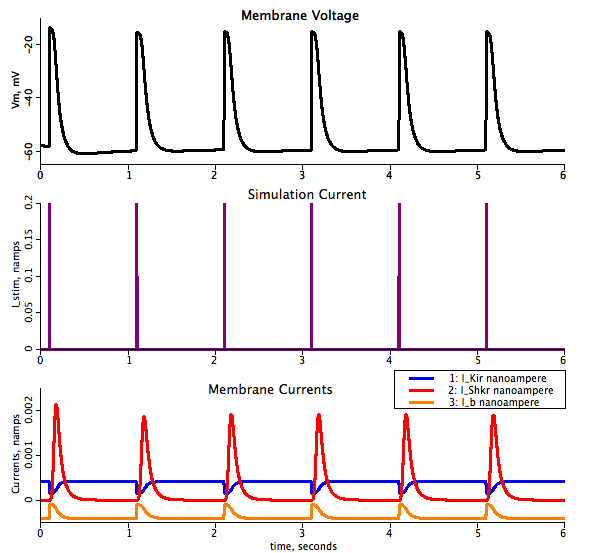

fig 1



Constants of fibroblast model:

table 1

Physical constants:

table 2

Initial values of fibroblast model for [K+]o=5 mM:

table 3

Download JSim model project file


Help running a JSim model.

 Sachse FB, Moreno A, Abildskov JA.; Electrophysiological modeling of fibroblasts and their interaction
 with myocytes. Annals of Biomedical Engineering 36(1): 41-56, 2008.
