A lumped-parameter model of the systemic circulation. A chopped-sine left ventricle pressure signal drives flow through the system.


This is a lumped-parameter model of the systemic circulation based on Olansen et al. (2000). A chopped-sine left ventricle pressure signal drives flow through the system. Seven windkessel compartments in series represent the peripheral circulation while the cerebral and coronary circulations are represented by a resistive element alone. The arterial, venous and Vena cava segments are each characterized by a non-linear PV relationship. All other compartments are described by a single compliance value. The resistance of the arterial and Vena cava segments are also non-linear; all other resistances are linear. Parameters were chosen to produce a textbook pressure profile throughout the circulation and a total cardiac output of 5 L/min.

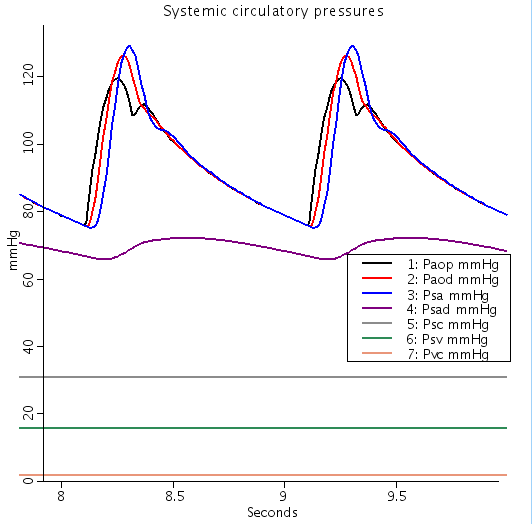

fig 1

Above Figure:
Paop: Proximal aorta press, Paod :Distal aorta press, Psa: Systemic artery press, Psad: Systemic arterioles press, Psc: Systemic capillaries press , Psv: Systemic veins press, Pvc: Vena cava press


The equations for this model may be viewed by running the JSim model applet and clicking on the Source tab at the bottom left of JSim's Run Time graphical user interface. The equations are written in JSim's Mathematical Modeling Language (MML). See the Introduction to MML and the MML Reference Manual. Additional documentation for MML can be found by using the search option at the Physiome home page.

Download JSim model project file

Help running a JSim model.

Olansen JB, Clark JW, Khoury D, Ghorbel F, Bidani A. A closed-
loop model of the canine cardiovascular system that includes
ventricular interaction. Computers and Biomedical Research.
33: 260-295, 2000.

Lu K, Clark JW, Ghorbel FH, Ware DL, Bidani A. A human
cardiopulmonary system model applied to the analysis of the
Valsalva maneuver. Am J Physiol Heart Circ Physiol.
281: H2661-H2679, 2001.

Ohm GS. Die galvanische Kette mathematisch bearbeitet, 1827
Key terms
Systemic circulation
cardiovascular system
Vena cava
cerebral circulation
coronary circulation
