Model number
0345

Example JSim model generated from Modular Program Constructor (MPC). Three species (A, B, C), two compartment model with two reactions in compartment two with species concentrations described by ordinary differential equations (ODEs). Taken from 2015 F1000 article.

Description

This is the example used to reproduce Figure 2 (Solution to two compartment model generated from MPC.) of Jardine et al., 2015 paper describing the MPC software. To run simulation go to the 'Run Time' tab and hit the 'Run' button near the top of page. 'Figure2' plot page on left should display results as decribed in paper. External imput for species 'A' is an Lag Normal input function. There is no flow in of species 'B' and 'C'.



Model generation by MPC:

Please see MPC GitHub repository for MPC software and introduction. More information on MPC can also be found hereThis model was created using two files:

a module library

and an MPC file

which specifies how MPC is to create the final model. These files are in plain text and you are encouraged to view them. They are annotated to assist in reviewing. The actual syntax to generate the model is: 'java -jar MPC.jar F1000_example.mpc', which creates a model (F1000_example.mod) that can be used by JSim.



fig 1

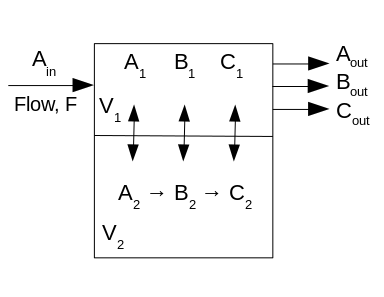

Figure 1: Two compartment, three species model (A, B, C) with volumes V1, V2, respectively. Ain is the concentration of A entering compartment 1 through which the flow is F. There is no flow in V2, but there are the reactions A-->B and B-->C. Passive exchange between compartments occurs for all three species.



fig2

Figure 2: Solution to two compartment model generated from MPC. Species concentrations plotted as a function of time. Species A (red), B (green), C (blue). Compartment 1: solid line, Compartment 2: dashed line. Lag Normal external input for species A is Ain, the black solid line.



Equations

The equations for this model may be viewed by running the JSim model applet and clicking on the Source tab at the bottom left of JSim's Run Time graphical user interface. The equations are written in JSim's Mathematical Modeling Language (MML). See the Introduction to MML and the MML Reference Manual. Additional documentation for MML can be found by using the search option at the Physiome home page.

Download JSim model project file

Help running a JSim model.

References
 Jardine B, Raymond G and Bassingthwaighte J. Semi-automated Modular Program Constructor
 for physiological modeling: Building cell and organ models,
 [version 1; referees: awaiting peer review] F1000Research 2015, 4:1461
 (doi: 10.12688/f1000research.7476.1)

 Butterworth E, Jardine BE, Raymond GM, Neal ML, Bassingthwaighte JB.
 JSim, an open-source modeling system for data analysis,
 [v3; ref status: indexed, http://f1000r.es/3n0]
 F1000Research 2014, 2:288 (doi: 10.12688/f1000research.2-288.v3)
Key terms
modular modeling
JSim
computational biology
compartmental modeling
MPC
enzyme reactions
ODE
two compartment
