Model number

Model of Boltzmann gated channel conductance vs. transmembrane voltage for any ion. Valence and # of gating charges are variable.


Provides current voltage relationships for potassium currents
 through a passive leak conductance and through a voltage-gated channel
 in a membrane. Gives Nernst potentials. Allows changing of gate charges
 and mean Em for the gate, EKchan, as well as concentrations and temperature
 in order to explore the Boltzmann relationships.
 Model for monovalent cation in water driven by electrochem gradient
 Membrane separates 2 regions of fixed concentrations, Ko and Ki
 Solute activities are unity. Currents reach S.S. instantaneously
 Single channel conductance about 300 pSiemens; 10^6 chan -> 300 uS.
 See Notes within this .proj file for guidance.


Vboltzmann_plot pic1

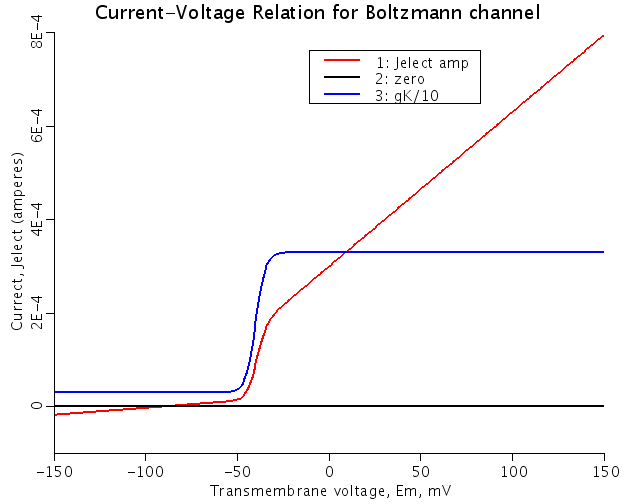

Figure: Membrane current (Jelect) and conductance (gK) as a function of transmembrane potential. Current flows through passive leakage and a voltage-gated channel.


The equations for this model may be viewed by running the JSim model applet and clicking on the Source tab at the bottom left of JSim's Run Time graphical user interface. The equations are written in JSim's Mathematical Modeling Language (MML). See the Introduction to MML and the MML Reference Manual. Additional documentation for MML can be found by using the search option at the Physiome home page.

Download JSim model project file

Help running a JSim model.

Hille B. Ion Channels of Excitable Membranes, Third Edition.
 Sunderland, Massachusetts: Sinauer Associates, 2001, 814 pp. page 19, Figure 1.6
Key terms
Nernst potential
ionic current
gating current
conformational state
ion valence
