(Matlab) Catalytic Coupling of Oxidative Phosphorylation, ATP Demand, and Reactive Oxygen Species Generation.


(Abstract) Competing models of mitochondrial energy metabolism in the heart are highly disputed. In addition, the mechanisms of reactive oxygen species (ROS) production and scavenging are not well understood. To deepen our understanding of these processes, a computer model was developed to integrate the biophysical processes of oxidative phosphorylation and ROS generation. The model was calibrated with experimental data obtained from isolated rat heart mitochondria subjected to physiological conditions and workloads. Model simulations show that changes in the quinone pool redox state are responsible for the apparent inorganic phosphate activation of complex III. Model simulations predict that complex III is responsible for more ROS production during physiological working conditions relative to complex I. However, this relationship is reversed under pathological conditions. Finally, model analysis reveals how a highly reduced quinone pool caused by elevated levels of succinate is likely responsible for the burst of ROS seen during reperfusion after ischemia.

fig 1

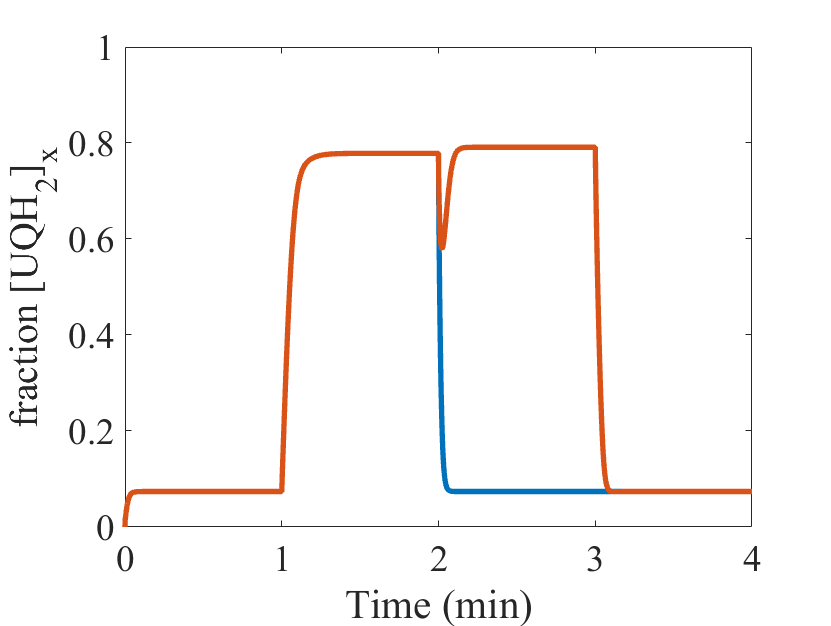

Figure 1: (From Bazil et al. 2016 Fig 6) Model simulations of ischemia/reperfusion (I/R). Two I/R simulations are run for the I/R protocol timeline shown (blue, orange). The model parameters are given in Table 1 and the Supporting Material. For the initialization period, the O2 concentration is set to 30 mM, and the ATPase activity is set to 2 mM/s to produce a moderate workload demand. For the ischemic period, the O2 concentration is set to 1 nM to reflect the hypoxic conditions during ischemia. For the reperfusion period, the O2 concentration is reset to its original value for both I/R Simulations 1 and 2. For I/R Simulation 2, the complex II activity and its apparent equilibrium constant are both increased by a factor of 10 to account for an accumulation of succinate that occurs during ischemia. In the recovery period, the model parameters are reset to the conditions for the initialization period. The steady-state model output for fraction of UQH2, ROS production and O2 consumption are shown for Fig1 – Fig3, respectively.




Figure 2: The steady-state model output for ROS production (JROS). For the I/R Simulation 2 conditions, reverse electron transport (RET) is the dominant source of ROS and leads to a 10-fold higher ROS production rate (red dashed) compared to forward electron transport (as compared to ROS production during the initialization period). This is only possible when there is a buildup of substrates that directly lead to UQH2 (e.g., succinate).


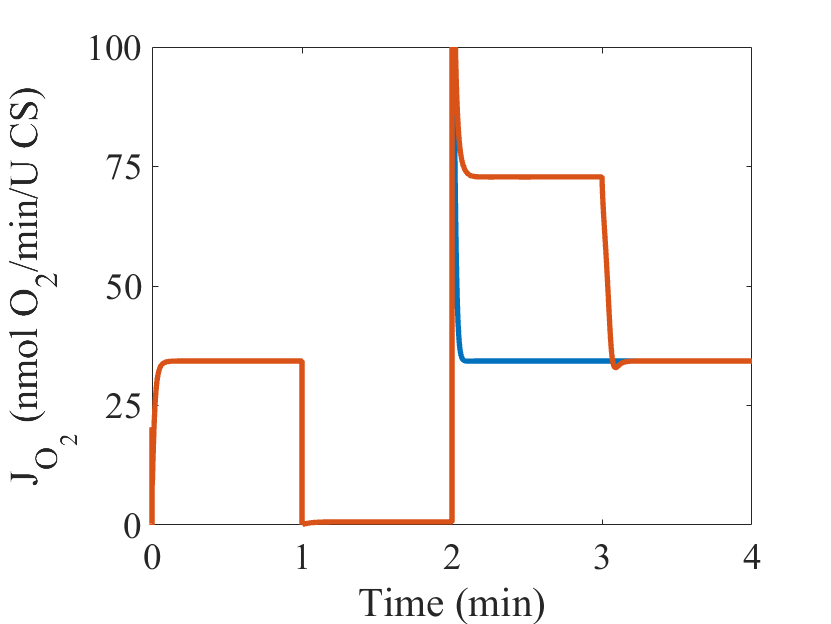

Figure 3: The steady-state model output for O2 consumption (JO2).


The equations for this model may be viewed by opening up the Matlab model files downloaded from below.

Download Matlab model and associated files.

  • (Primary) Jason N. Bazil, Daniel A. Beard, Kalyan C. Vinnakota, Catalytic Coupling of Oxidative Phosphorylation, ATP Demand, and Reactive Oxygen Species Generation, Biophysical Journal, Volume 110, Issue 4, 2016, Pages 962-971, ISSN 0006-3495,
