TranspMM.2sol2sided.BolusSw.MID4

Model number
0022

A two region two-sided Michaelis-Menten transporter with bolus sweep multiple indicator dilutions.

Detailed Description

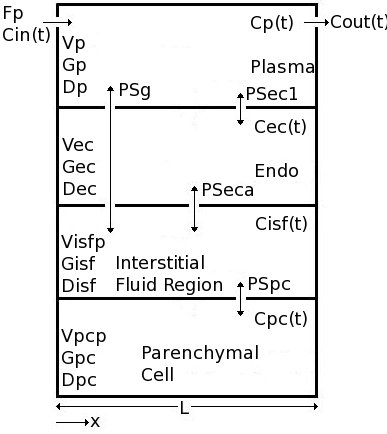

2sol2sidedBolusSw pic1

A multiple indicator dilution model. 4 compartment model that includes serotonin tracer curves. Assumptions:
Tracer (14C-5-HT) << then Mother (5-HT)
Competition between Mother and Tracer across membranes.
Multiple indicator dilution references.
Green Dye stays within capillary (Vascular reference).
Sucrose used as a ISF reference.
Sucrose and Serotonin PSg are equal.
Concentration of SID is similar to tracer.

Relevant Equations

p = Plasma, isf = Interstitial Fluid Region, ec = Endothelial Cell, pc = Parenchymal Cell

Michaelis-Menten type Transporters PS's and Consumptions G for Mother, and used by Tracer.

e0

e1

e2

e3

e4

Partial Differential Equation for Mother Solute, e.g. non-tracer serotonin.

e5

e6

e7

e8

Partial differential equation for Diffusive tracer.

e9

e10

e11

e12

Partial differential equation for Intravascular Reference (no G or PS)

e13

Partial differential equation for Extracellular Reference (PSg > 0, no G or PS)

e14

e15

PSg: Passive conductance channel between Plasma and ISF
PSecl: Concentration dependent transporter between Plasma and EC
PSeca: Concentration dependent transporter between ISF and EC
PSpc: Concentration dependent transporter between ISF and PC
Gec: EC consumption, can be set to zero.
Gpc: PC consumption.
Fp: Plasma Flow Rate.
Vp: Plasma Volume.
Vec, Visfp, Vpcp: Volumes of distribution
PSg, Pspc: Permeability-surface area product exchange coefficient.
Gp, Gisf, Gpc: Consumption rates for metabolite.
Dp, Disf, Dpc: Axial Diffusion coefficient.
Cin: Plasma metabolite inflow.
Cout: Plasma metabolite outflow.
Cp, Cisf, Cpc: Mother metabolite concentration.
CTp, CTisf, CTpc: Tracer concentration.
CRp: Single Indicator dilution reference concentration.
CRxp, CRxisf: Extracellular reference tracer concentration in p and ISF.

Download JSim model project file
References

Bronikowski, T.A., et al., A Mathematical-Model of Indicator Extraction by the Pulmonary Endothelium Via Saturation Kinetics. Mathematical Biosciences, 1982. 61(2): p. 237-266.

Dawson, C.A., et al., Kinetics of Serotonin Uptake in the Intact Lung. Annals of Biomedical Engineering, 1987. 15: p. 217-227.

Linehan, J.H., T.A. Bronikowski, and C.A. Dawson, Kinetics of Uptake and Metabolism by Endothelial-Cell from Indicator Dilution Data. Annals of Biomedical Engineering, 1986. 14(1): p. 87-87.

Malcorps, C.M., et al., Lung Serotonin Uptake Kinetics from Indicator-Dilution and Constant-Infusion Methods. Journal of Applied Physiology, 1984. 57(3): p. 720-730.
