Fit the long tailed vascular output curves using N decaying exponentials where the ratio of the decay rates is constant and the ratio of the amplitudes is also constant.

## Description

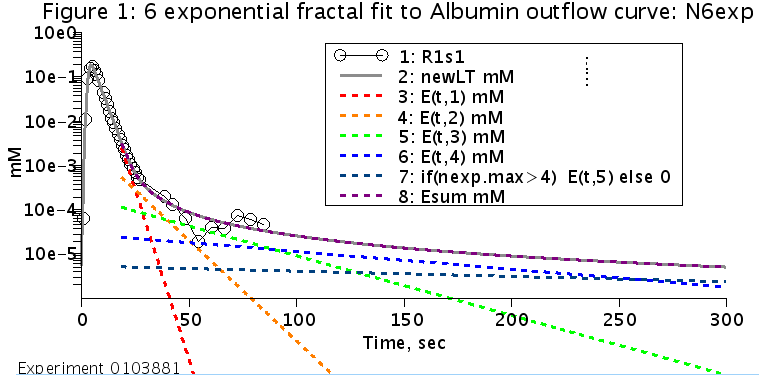

Fit the long tail of a vascular outflow curve from an indicator dilution curve with the sum of N exponentials at tjoin matching both the function, F, and the slope, S. It is assumed that S is negative. N ----- \ Tail(t) = ) w(i)*exp( -k(i)*(t-tjoin) ) / ----- i = 1 where w(i) = a*w(i+1), a>1; k(i)=b*k(i+1), b>1. If F is the value of the function and S is the slope at t=tjoin, then the coefficients are given as (N - i) a F (a - 1) w(i) = ------------------ N a - 1 (N - i) N b S (a - 1) (a b - 1) k(i) = - ----------------------------- N F (a - 1) ((a b) - 1) It can be shown that N N ----- ----- \ \ F= ) w(i) and S= ) -w(i)*k(i) / / ----- ----- i = 1 i = 1 The user can use optimization to calculate values for a, b, and tjoin. The limits on a and b are a>0, b>1.

For further information relating fractally scaled models with power law models

## Equations

None.

The equations for this model may be viewed by running the JSim model applet and clicking on the Source tab at the bottom left of JSim's Run Time graphical user interface. The equations are written in JSim's Mathematical Modeling Language (MML). See the Introduction to MML and the MML Reference Manual. Additional documentation for MML can be found by using the search option at the Physiome home page.

- Download JSim model MML code (text):
- Download translated SBML version of model (if available):
- No SBML translation currently available.
- Information on SBML conversion in JSim

We welcome comments and feedback for this model. Please use the button below to send comments:

J.B. Bassingthwaighte and D.A. Beard. Fractal 15 O-labeled water washout from the heart. Circ. Res. 77:1212-1221, 1995. L.M. Schwartz, T.R. Bukowski, J.H. Revkin, and J.B. Bassingthwaighte. Cardiac endothelial transport and metabolism of adenosine and inosine. Am. J. Physiol. 227 (Heart Circ. Physiol. 46):1231-1251, 1999.

Please cite https://www.imagwiki.nibib.nih.gov/physiome in any publication for which this software is used and send one reprint to the address given below:

The National Simulation Resource, Director J. B. Bassingthwaighte, Department of Bioengineering, University of Washington, Seattle WA 98195-5061.
