MM.Lag.Reaction.Sequence

Model number
0425



Michaelis-Menten Reaction Sequence for solutes A to E in a stirred tank, with lagged input into flowing reactor with constant volume, Vol, and step jumps in flow and in reaction rates. This is the third in a series of four models to account for substrate capacitance in enzymatic networks. The first model is Linear.Reaction.Sequence (Model #0423).

Description

 A reaction sequence A-->B-->C-->D-->E can be represented many ways to approximate the biological form of the reactions.
 This version is the next to simplest: Michaelis-Menten unidirectional reaction clearances, giving progress curves
 as in a bioreactor, but with additional factor of a flow through the mixing chamber. The flow term is first order
 for all solutes in the sequence, but the reaction terms are saturable MM, Vmax*A/(Km+A).
     The inflowing initial solute A, the flow, ml/sec, Flow*CinA, equals the sum of the outflow clearance plus the
 last reaction E--> ?, i.e.  G*E, then the outflow concentration of A in the steady state goes to 50% of CinA
 (Do this by setting Flow1 = Flow2 = 0.05 ml/sec and setting GA1 and GA2 also to 0.05 and run the program. The
 other reaction rates, to form C, D, and E are set identidal to that to form B from A, the result is that steady state
 concentrations for A, B, etc go to 0.5, 0.25, 0.125, 0.0625, and 0.03125, all at one half of its predecessor.
     This program illustrates the transient delays between steady state, and the form of the transients.
 With MM kinetics there is really no enzyme there, and no binding of the reactants in the process of the reaction.
 All of the delay is due to the combination of flow and the reaction, exactly similar to the first order reaction
 kinetic model (Model #432). The initial conditions are zero for all solutes
 so the time constant for the initial entry would be simply the volume divided by flow, Vol/Flow1, in seconds,
 if there were no reaction. The reaction, augmenting the disappearance of A, shortens the time constant so that
 it is Vol/(GA + Flow1).
      The second transient is due to a step increase (or decrease) in flow at time TFjump (at t=30 s with this
 parameters set (LagMM.181026). The third transient is a step change in the reaction rates at time TGjump.
   The Verification Process is the same as for the linear kinetics, and which does verify the code whn the solute
 concnetrations are 1 mM hen the Km was
      The solution to the differential equation for solute A is accomplished using the numerical solvers,
 but it is also solvable analytically. The three transients, at t = 0, t= 30 s and t=60 s, are expressed in three
 analytical equations. Their sum fits exactly the numerical solutions to the systems equations after the effects of
 lag TauA on the conentration of A in the compartment. VERIFICATION!
 Try this out using the difference ODE solvers: it turns out the DOPRIS5 (an advanced RungeKutta algorithm)
 gives a more precise fit to the analytical solution than either of the more powerful stiff solvers, CVODE or
 Radau. At the steep parts of the transients DOPRIS5 is still good to 7 decimal digits, while the other supposedly
 superior solvers, CVODE and Radau are good only 5 or 6 decimal digits. In the steady state they all give the same
 correct answers.
       For solutes B through E, the analytical solutions are more complex, and have not been developed. For these
 it is much faster to use the numerical solutions to the ODEs; the analytical solutions for solute E would be,
 because of their complexity, much slower to compute, and maybe not even as accurate as the numerical solutions,
 even for this rather simple model system. What we know is that the steady state solution match exactly to the
 predicted steady state values for A through E.
       This model is a variant on Michaelis-Menten that approximates the effect of solute binding to the
 enzymes (Model #425). That is done to correct the inadequate kinetics of M-M expressions. This family of models
 is designed for use as a set of tools to determine the magnitude of the buffering capacitance and consequent
 delay in transient responses in enzyme systems. In this case RUN LOOPS to double Etot and halve k2A to keep
 the flux the same.
      The basis for this series of models to account for substrate capacitance in enzymatic networks
 is first the model Linear.Reaction.Sequence (Model #423); the second Model (#424) is MM.Reaction.Sequence,
 and this is the third, MM.Lag.Reactio.Sequence (Model #425). The fourth, (Model #426)
 adds the on- and off kinetics for a single uncomplicated reaction, Enzyme.React.Seq.Full.Kinetics.



fig 1

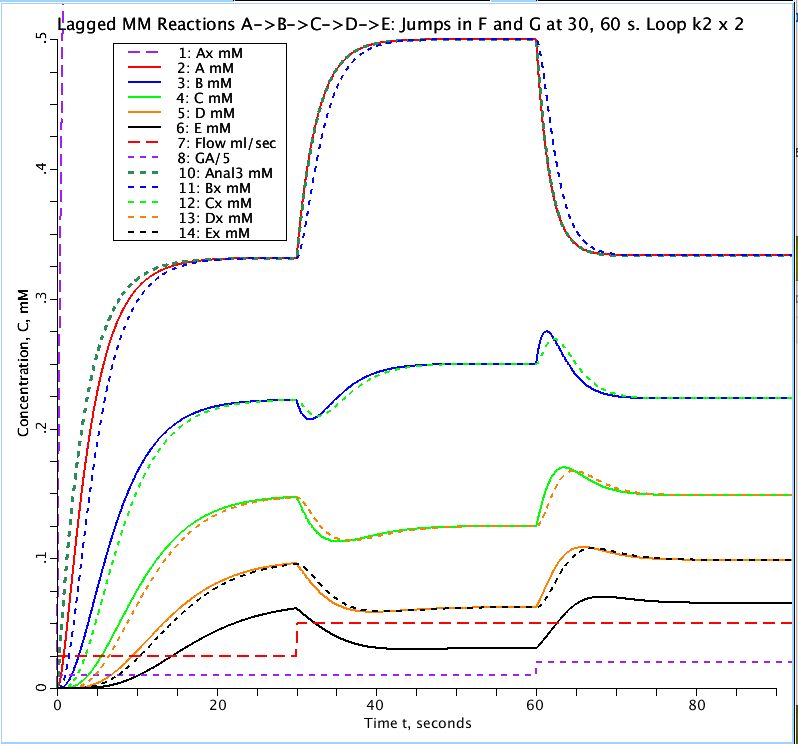

Figure: Progress curves for a sequence of reactions from substrate A to E in a compartment with flow through the compartment. All substrates have initial concentration of zero with A in (CinA) set to 1 mM. The lag terms Ax, Bx, Cx, Dx, Ex (mM) are the added terms use to approximate a delay in free substrate due to enzyme binding. Flow doubles from 0.025 to 0.05 ml/sec at t= 30 sec. Consumption (the flow of fluid cleared of substrate per unit time) doubles from 0.05 to 0.1 ml/sec at t= 60 sec. GA is the consumption of substrate A and Anal3 is the analytical solution for substrate concentration A as a function of time and matches A(t) after the lag is taken into account.
