Model number

An axially distributed two region two-sided Michaelis-Menten transporter model, with permeation across the capillary wall via clefts (PSg) and cell transporters (PSc).

Further reading:     Distributed Blood Tissue Exchange Models Explained



This is an axially distributed 2-region capillary-tissue exchange model with
  permeation across the capillary wall via clefts (PSg) and  cell transporters (PSc).
  The capillary plasma region has volume Vp, flow Fp, first order  consumption Gp,
  and axial diffusion Dp. Units are physiological (i.e. per gram of tissue) so that
  this can represent a homogeneously perfused organ. Radial diffusion is assumed
  instantaneous (short radial distances).
 This interstitial fluid region, isf, has volume Visf, first order consumption Gisf,
  and axial diffusion Disf. Capillary-tissue exchange is modeled by two parallel routes:
  1. PSg: Passive exchange between plasma and surrounding non-flowing interstitial
   fluid is through interendothelial clefts. PSg is Permeability-Surface area product.
  2. PSc: Facilitated transport occurs via a transporter on the capillary membrane
   with PScmax as maximal conductance at low concentrations.
   Transporter is modified from TranspMM.1sided.Distrib2F--facilitated transport can go either way.




     Two-sided Saturable Transporter Equation



     Differential Equations




    Left Boundary Conditions

e3,  e4


    Right Boundary Conditions

e5,  e6,  e7


     Initial Conditions

e8,  e9  or

e10,  e11


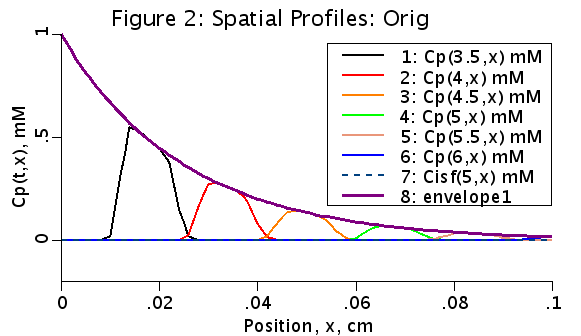

The equations for this model may be viewed by running the JSim model applet and clicking on the Source tab at the bottom left of JSim's Run Time graphical user interface. The equations are written in JSim's Mathematical Modeling Language (MML). See the Introduction to MML and the MML Reference Manual. Additional documentation for MML can be found by using the search option at the Physiome home page.

Download JSim model project file

Help running a JSim model.

  Sangren WC and Sheppard CW. A mathematical derivation of the
  exchange of a labeled substance between a liquid flowing in a
  vessel and an external compartment. Bull Math Biophys 15: 387-394, 1953
  (This gives an analytic solution for the two-region model.)

  Goresky CA, Ziegler WH, and Bach GG. Capillary exchange modeling:
  Barrier-limited and flow-limited distribution. Circ Res 27: 739-764, 1970.
  (This gives another derivation of the analytical form, and uses the model in
  both single and multicapillary models.

  Bassingthwaighte JB. A concurrent flow model for extraction
  during transcapillary passage. Circ Res 35: 483-503, 1974.
  (This gives numerical solutions, which are faster than the analytic solutions,
  and embeds the model in an organ with tissue volums conserved, and with arteries
  and veins. The original Lagrangian sliding fluid element model with diffusion.)

  Guller B, Yipintsoi T, Orvis AL, and Bassingthwaighte JB. Myocardial
  sodium extraction at varied coronary flows in the dog: Estimation of
  capillary permeability by residue and outflow detection.
  Circ Res 37: 359-378, 1975.
  (Application to sodium exchange in the heart.)

  Goresky CA. Hepatic membrane carrier transport processes:  Their involvement
  in bilirubin uptake. In: Chemistry and Physiology of Bile Pigments.
  Washington, D.C.: Publishing House U.S. Government, 1977, p. 265-281.

  Silverman M and Goresky CA. A unified kinetic hypothesis of carrier-mediated
  transport:  Its applications. Biophys J 5: 487-509, 1965.
Key terms
Axially Distributed
two region
capillary-tissue exchange
facilitated transport
interstitial fluid region
radial diffusion
