Panel 4 -- How do we incorporate verification, validation and uncertainty quantification in MSM for precision healthcare?


Panel Members:

  1. Tony Hunt
  2. Wing Kam Liu
  3. Lealem Mulugeta (scribe)
  4. Dalin Tang



The following is from Ch. 1 of the NRC 2012 document: Assessing the Reliability of Complex Models: Mathematical and Statistical Foundations of Verification, Validation, and Uncertainty Quantification.

For purposes of this report the committee adopts the following definitions: • Verification. The process of determining how accurately a computer program (“code”) correctly solves the equations of the mathematical model. This includes code verification (determining whether the code correctly implements the intended algorithms) and solution verification (determining the accuracy with which the algorithms solve the mathematical model’s equations for specified quantity of interest). • Validation. The process of determining the degree to which a model is an accurate representation of the real world from the perspective of the intended uses of the model (taken from AIAA, 1998). • Uncertainty quantification (UQ). The process of quantifying uncertainties associated with model calculations of true, physical quantity of interest, with the goals of accounting for all sources of uncertainty and quantifying the contributions of specific sources to the overall uncertainty.

These definitions are intended for the “Grand Unified Model” concept illustrated in Fig. 1.1 of the report.

VV & uncertainty characterizations (U) must be discussed in the context of specified model uses. The meeting focus is MSM and Precision Medicine. In the attached document (Visions for How MSM Enables Individualized/Precision Medicine/Healthcare) I offer two model-use visions. Both visions center on use of “virtual patients” (VPs) that are composites of MSMs. My comments below are based VP use cases described under Vision 2.

My position: the preceding definitions are not useful for the future context of using VPs to enable and facilitate precision (individualized) healthcare decisions under Vision 2. I envision VPs being a necessary and essential part of the Precision Medicine process. In that context, validation is the process that answers this question: is this an acceptable/trustable VP for the individualized use cases under consideration? Verification will be the process and information that enables answering this question: can we trust the origins, organization, and evolution of this VP, and further, can we trust that this VP is what the user thinks it is (which is beyond simply trusting that it is what it claims to be)?

Clearly software issues are critical (especially the mappings from software components & mechanisms to human counterparts in the specified individual). However, the origins, organization, and evolution of the components assembled to create a VP (or a set of VP variants) will go far beyond the software. We must consider the conceptual models on which the VP (& components) was based. Are there several? Are they stable or evolving? To what extent have they survived rounds of experimental challenge (wet-lab, clinical, translational, & in silico)? We must also consider the wet-lab/clinical data on which conceptual models were based (and may have been used in earlier VP simulation validations). How do we characterize the experimental, mechanistic, and translational uncertainties? What can we say about sources of biological and experimental variability?

For a specified medical context, each layer (wet-lab, clinical, conceptual, translation, specification, VP, use cases) is important. Because they are interconnected, if any one layer is untrustworthy, then the trustworthiness of each is in question. Uncertainty characterization applies in all layers: U(wet-lab), U(clinical), U(conceptual), U(trans), U(spec), U(VP), and U(use cases [different individuals]). Just for example, if we learn that there was an experimental design/procedure flaw (oversight, unjustified assumption, …) in the wet-lab models from which the conceptual mechanisms (for the particular disease focus) were induced, then U(VP) is at least as complex as UQ(wet-lab).

Having an acceptable/trustable VP components means that a biomedical domain expert must be able to examine a VP (or cadre of VPs) and their simulation events (for the considered medical intervention) under different scenarios without needing computational expertise. To do that, issues, information, and documentation, on which each of the above Us is based, needs to accessible from within the VP and its framework. If that is the case, then the VP is also serving a larger purpose: it is a knowledge embodiment.

MSM Meeting Panel Discussion Materials

Panel 4 discussion agenda - Final: Media:MSM_2012_-_Panel_4_agenda_Final.doc

VV&UQ Multiscale IVP (Liu): Media:Final_VV&UQ_Multiscale_IVP_Suv-Panel_Oct_22-23_2012.ppt

NASA's DAP M&S Credibility Assessment Process (Mulugeta): File:NASA's DAP M&S Credibility Assessment Process- MSM Meeting Wiki.pdf

(Hunt): Media:Fig1_Panel_4.jpg


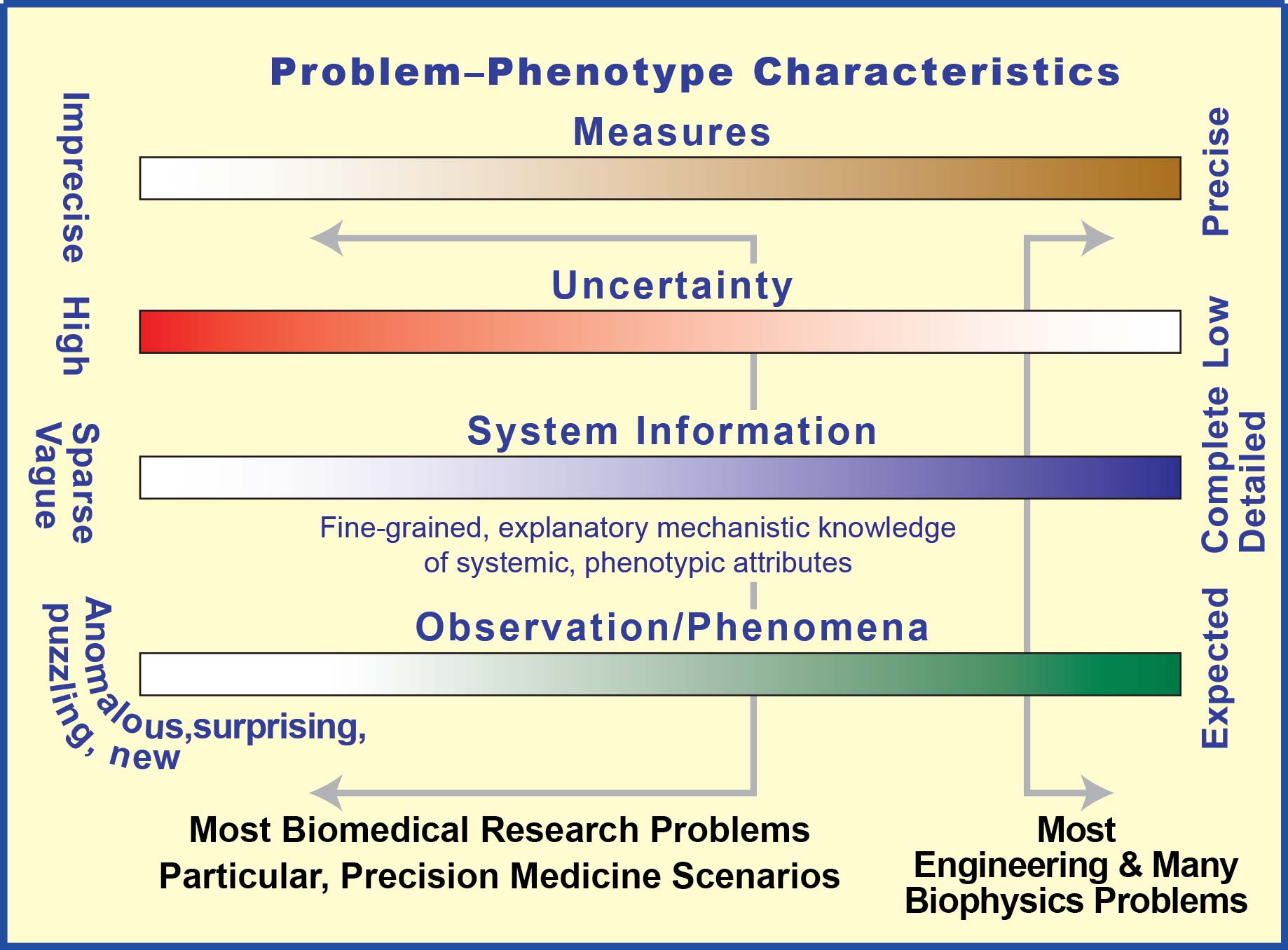

This figure illustrates multiscale, multilevel influences in cancer prevention and control. It can also serve to illustrate features of the envisioned individualized virtual patients (IVPs) that will enable Precision (individualized) Medicine: Media:Multiscale,_multilevel_influences_17Oct12.pdf

Figure only Media:Fig1_Panel_4.jpg


Visions for how MSM enables individualized/precision medicine/healthcare: Media:CommentsPrecisionMed12Oct12.doc

VV & UQ ideas for Panel 4 (& MSM meeting) discussion: Media:VV_&_UQ_discussion_points_10Oct12.doc

Short document that includes MSM-focused commentary on the six conclusion and six recommendations of the “Toward Precision Medicine” document: Media:CommentsPrecisionMed10Oct12.doc

This sketch and legend are for use in support of Panel 4 discussions: Media:VV&U_DiscSupportFig17Oct12.doc

MSM 2012 - Panel 4 agenda Revision A: Media:MSM_2012_-_Panel_4_agenda_Revision_A.doc

Question from Louis Gross: I find it surprising how little emphasis there is on defining evaluation criteria for models prior to constructing the model. Such criteria need to be guided by the purposes for which the model is being constructed. How to we more effectively encourage our own modeling community to carefully specify objectives and evaluation criteria prior to model development?

Notes from the Post-panel Breakout Discussion


Pras Pathmanathan:

Wing Liu:

Thomas Russel:

Lealem Mulugeta: or

Jacob Barhak:


It is clear that we need to first establish definitions of key terms and concepts in order to be able to establish systems and methods for vetting computational models developed by the MSM community. One concept that was highlighted during the breakout discussion is:

What does “precision medicine” mean?

  • From a clinician point of view: diagnostic or procedure that can help the patient
  • From a scientist perspective: this is based on the complexity of the problem and the data available
  • Although the above two definitions are a good attempt at defining what “precision medicine” means to clinicians and scientists, we need to engage clinicians and the MSM research community to establish a clear definition of “precision medicine”.
  • In addition, although “precision medicine” was the theme of the MSM Consortium Meeting this year, are all the models developed by the MSM community for precision medicine? Is it possible that some of these models are intended for broader clinical investigations? If the latter case is true, then it may be more appropriate to not restrict ourselves to the concept of “precision medicine”.

How should we define “below the skin” models? – Wing Lui will draft a proposed definition

How should we define “above the skin” models? – Lealem Mulugeta will draft a proposed definition

Regardless of the type of model that is under consideration (e.g. above or below the skin), the processes involved in understanding the behavior of a model and ensuring it is clinically believable will likely consist of some common elements/factors. Some of the elements highlighted by the meeting participants include:

  • Verification
  • Validation
  • Uncertainty Quantification
  • Uncertainty Propagation
  • Quality Control – Documentation, traceability of the origins of the model, and version control etc

There may be more elements/factors, but it is important to establish clear definitions of the elements/factors as they relate to the MSM community’s work. During the panel discussion and the breakout session, it was apparent that different researchers and practitioners have different definition of what each of the terms mean. The differences in definitions are likely a due to the researchers’ or practitioners’ specific field and technical focus within that field.

In addition, the methods and challenges of implementing each element/factor may differ depending on the complexity or type of models. In some cases it may be appropriate to vet models using benchmark problems (e.g. comparison with a calibrated model) in combination with some or all of the elements/factors listed.

This work will be carried forward over the following months. This will likely be done through a working group or committee dedicated to advocating and defining methods the MSM community can leverage to build the credibility of their models and simulations to inform clinical events and interventions.

As we continue this discussion forward, we encourage anyone from the MSM community to contribute. If you are interested in participating as part of the working group/committee which will be formed in the near future, please let us know either by posting to this wiki page or emailing Lealem Mulugeta (see above).

4-Dec-2012 Comment by Jacob Barhak

To improve model credibility, it is important to admit mistakes as fast as possible and investigate them quickly. This is fundamental for long term credibility. If people know that mistakes are being caught and dealt with, then the system is considered maintained and therefore more credible than a system that is not maintained. And beyond the psychological aspect, the constant improvement with each version makes the system more reliable.

Therefore it is recommended that models maintain a bug list / errata / wanted features list.


12-Dec-2012 Comment by Jacob Barhak

The literature provides several guidelines for modeling that discuss uncertainty. [1] provides general guidelines for disease modeling while [2] provides more specific guidelines for diabetes modeling.


[1] Weinstein MC, O’Brien B, Hornberger J, Jackson J, Johannesson M, McCabe C, et al. Principles of good practice for decision analytic modeling in health-care evaluation: report of the ISPOR Task Force on Good Research Practices – Modeling Studies. Value Health 2004;6:9–17. American Diabetes Association Consensus Panel 2004), Guidelines for computer modeling of diabetes and its complications (Consensus Statement), Diabetes Care 27 2262-2265.

[2] American Diabetes Association Consensus Panel. Guidelines for computer modeling of diabetes and its complications (Consensus Statement). Diabetes Care 2004;27:2262–5.
