Comparison of 1-sided and 2 sided Michaelis-Menten transporters in a two compartment model without flow.

## Description

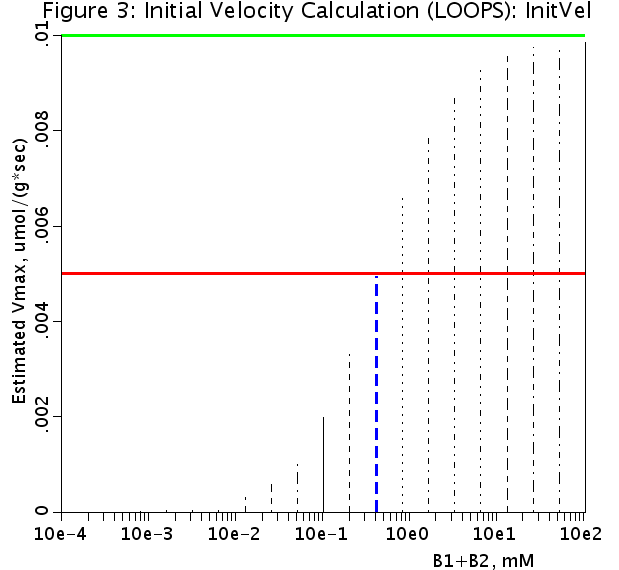

Figure3: Determining Vmax and Km from initial velocity: The quantity, VmaxEstB = V2*B2/t.max is plotted (Black Lines) against B1+B2. The uppermost point of each nearly vertical line is an estimate of the velocity of the transporter between 0 and 1 second. VmaxEstB equals approximately V2*dB2/dt = PSeffective*(B1-B2).

As the Michaelis-Menten transporter becomes saturated (increasing values of B1+B2 ranging over 6 orders of magnitude), the uppermost points of the vertical lines asymptotically approach Vmax (Green Line). Half of the value, Vmax/2 (Red line) intersects the upper outline of these vertical lines where B1+B2 = Km (dashed Blue line).

Two types of a saturable Michaelis-Menten transporter are considered in this two compartment model without flow--a one sided transporter for solute A and a two-sided transporter for solute B. The model for solute A is cis- side driven. Concentration of A in V1, A1, determines the fractional saturation, PSa/PSmax, where PSmax is Vmax/Km, and

PSa = PSmax/(1 + A1/Km).

The model for solute B is cis-trans driven. Concentration of B in both V1 and V2, B1 and B2 respectively, determine the fractional saturation, where PSmax is Vmax/Km and

PSb = PSmax/(1 + B1/Km + B2/Km).

## Equations

#### One sided Michaelis-Menten Transporter

#### Ordinary Differential Equations

#### Initial Conditions

#### Two sided Michaelis-Menten Transporter

#### Ordinary Differential Equations

#### Initial Conditions

The equations for this model may be viewed by running the JSim model applet and clicking on the Source tab at the bottom left of JSim's Run Time graphical user interface. The equations are written in JSim's Mathematical Modeling Language (MML). See the Introduction to MML and the MML Reference Manual. Additional documentation for MML can be found by using the search option at the Physiome home page.
