Two single compartments use an oscillating flow through a pipe (BTEX10) to exchange material and volume.
Further reading: Distributed Blood Tissue Exchange Models Explained
Description

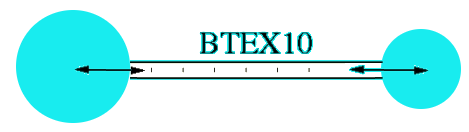

This model consists of two well-stirred (instantaneously mixed) compartments connected by a pipe (BTEX10) through which they exchange material and volume by an oscillating flow. The solutions from BTEX10_OscillatingFlow are compared with Comp1_OscillatingFlow (2nd model in this project, where the BTEX10 pipe is replace by a one compartment pipe) by setting the diffusion cofficient to a large value (D=0.1 cm^2/sec).
Equations
Algebraic Equations
Differential Equations
Left Boundary Conditions
Right Boundary Conditions
Initial Conditions
,
,
,
, and
or
where F is the oscillating flow, A1 and A2 are the amounts of substrate in volumes V1 and V2 respectively, and Cm is the concentration in the pipe with volume Vm and length L.
