BTEX10x2CircularFlow

Model number
0309

Two single compartments use a circular flow through a two pipes (BTEX10s) to exchange material. Pipe 1 has flow to the right, pipe 2 has flow to the left.

 Further reading:     Distributed Blood Tissue Exchange Models Explained

Description

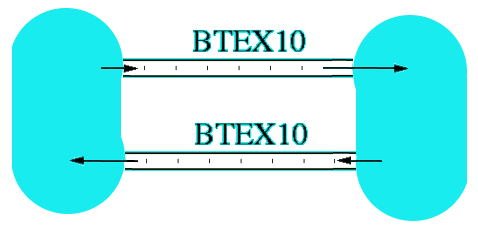

diagram 1


This model consists of two well stirred tanks (ODE's), connected by two smaller pipes (BTEX10 models (PDE's). The material circulates in a circular path. Pipe 1 is flow from the left, Pipe2 is flow from the right. The diffusion coefficient, D, is set to a high value for comparison with a corresponding version which uses compartmental models for the pipes. A second model is included, Compx2_CircularFlow comparing using compartmental models for the two pipes and a large value of the diffusion coefficient in the BTEX10 (partial differential equations) pipes. Model illustrates inflow boundary conditions and PDEs for inflow on both left and right boundaries.

Equations



     Differential Equations

e0

e1

e2

e3



    Left Boundary Conditions

e4

e5

e6



    Right Boundary Conditions

e7

e8

e9



     Initial Conditions

e10 , e11 , e12 , e13 , and e14 or e15



     Additional Equations

e16

e17





where F is the flow (positive when from left to right and negative when from right to left), A1 and A2 are the amounts of substrate in volumes V1 and V2 respectively, and CL (flow from left to right) and CR (flow from right to left) are the concentrations in the pipes with volumes Vm and lengths L.



The equations for this model may be viewed by running the JSim model applet and clicking on the Source tab at the bottom left of JSim's Run Time graphical user interface. The equations are written in JSim's Mathematical Modeling Language (MML). See the Introduction to MML and the MML Reference Manual. Additional documentation for MML can be found by using the search option at the Physiome home page.

Download JSim model project file

Help running a JSim model.

References
W.C. Sangren and C.W. Sheppard.  A mathematical derivation of the
exchange of a labelled substance between a liquid flowing in a
vessel and an external compartment.  Bull Math BioPhys, 15, 387-394,
1953.

C.A. Goresky, W.H. Ziegler, and G.G. Bach. Capillary exchange modeling:
Barrier-limited and flow-limited distribution. Circ Res 27: 739-764, 1970.

J.B. Bassingthwaighte. A concurrent flow model for extraction
during transcapillary passage.  Circ Res 35:483-503, 1974.

B. Guller, T. Yipintsoi, A.L. Orvis, and J.B. Bassingthwaighte. Myocardial
sodium extraction at varied coronary flows in the dog: Estimation of
capillary permeability by residue and outflow detection. Circ Res 37: 359-378, 1975.

C.P. Rose, C.A. Goresky, and G.G. Bach.  The capillary and
sarcolemmal barriers in the heart--an exploration of labelled water
permeability.  Circ Res 41: 515, 1977.

J.B. Bassingthwaighte, F.P. Chinard, C. Crone, C.A. Goresky,
N.A. Lassen, R.S. Reneman, and K.L. Zierler.  Terminology for
mass transport and exchange.  Am. J. Physiol. 250 (Heart. Circ.
Physiol. 19): H539-H545, 1986.

J.B. Bassingthwaighte, C.Y. Wang, and I.S. Chan.  Blood-tissue
exchange via transport and transformation by endothelial cells.
Circ. Res. 65:997-1020, 1989.

Poulain CA, Finlayson BA, Bassingthwaighte JB.,Efficient numerical methods
for nonlinear-facilitated transport and exchange in a blood-tissue exchange
unit, Ann Biomed Eng. 1997 May-Jun;25(3):547-64.
Key terms
BTEX10
compartmental
Circular flow
PDE
advection
diffusion
