A two compartment one-sided Michaelis-Menten transporter.

Description

fig1

fig2

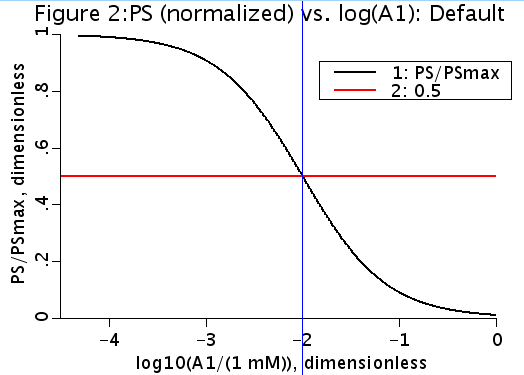

Compartmental models are based on mass balance equations. The compartment has a volume, V, and a time-varying concentration of a substance, C(t). An underlying assumption of compartmental models is that the material in the compartment is instantaneously well mixed. Compartmental models are also call well stirred tank models. This is a compartmental model for facilitated exchange between two chambers separated by a membrane. It is a closed model (no inflow or outflow), with volumes V1 and V2 for each compartment, time dependent concentrations A1(t) and A2(t) respectively, and an exchange coefficient PS. G2 is for Gulosity, the first order consumption of the solute in V2. This model assumes instantaneous solute binding to a Michaelis-Menten type transporter, with only a single site available from on the V1 side of the membrane. Fluxes are set by the concentration of A1(t) in V1. A1 determines the fractional saturation, PS/PSmax. See model TranspMM2sidedComp2.proj to compare with a transporter binding on either side of the membrane

Equations

     One sided Michaelis-Menten Transporter

e0

e1

     Ordinary Differential Equations

e2

e3

     Initial Conditions

e4

e5

The equations for this model may be viewed by running the JSim model applet and clicking on the Source tab at the bottom left of JSim's Run Time graphical user interface. The equations are written in JSim's Mathematical Modeling Language (MML). See the Introduction to MML and the MML Reference Manual. Additional documentation for MML can be found by using the search option at the Physiome home page.
