20,000 1-D random walks are taken, the summation of Gaussian distributed steps with mean of 0 and variance = 1 or uniformly distributed steps from -1 to 1. The positions at a specific step number are

Description

 1 DIMENSIONAL DIFFUSION, RANDOM DIRECTION, RANDOM STEP SIZE

   N walks (nwalks) are taken consisting of N steps (nsteps). Each
   walk starts at x=0. The steps are either left or right depending
   on a uniform random number(0 to 1) being greater than 1/2; the
   step lengths are taken from a uniform random distribution from
   0 to 1. The final positions are gridded into bins of width xL.delta.
   The distribution and the cumulative distributions are plotted along
   the expected Gaussian distribution and the expected cumulative
   distribution. The Gaussian distribution is given by

      Gaussian distribution = (A/(sigma*sqrt(2*PI))*exp(-(xL-xmean)^2/(2*sigma^2)));

   where A= xL.delta, tmean=0, and sigma = sqrt(ntime/3) for steps drawn from
   the uniform distribution from -1 to 1, or sigma = sqrt(ntime) for
   steps drawn from the Gaussian distribution with mean = 0 and variance = 1.



RandomWalk1D pic1

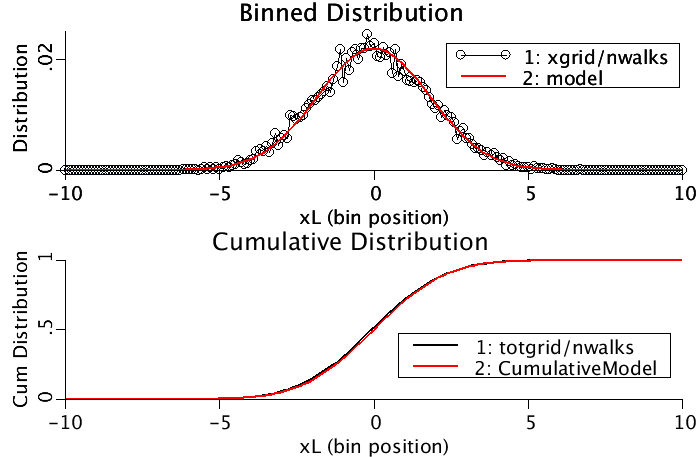

A Gaussian model fitting the end positions of a 1-D Random Walk.

Ten1DRandomWalks pic2

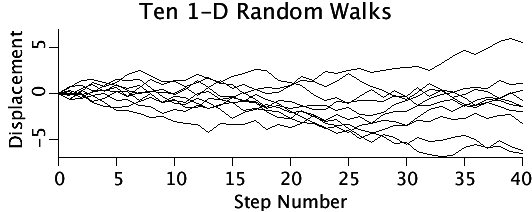

Ten 1D random walks.

Equations

None.
