Model number
0280

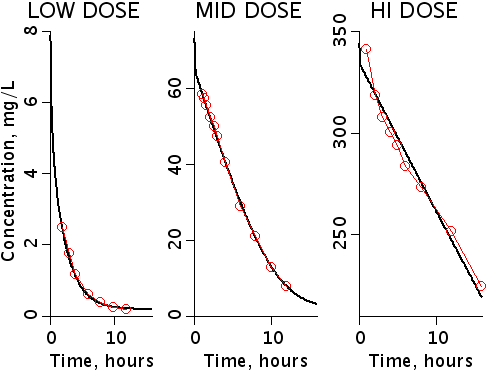

Salicylic acid (SA) clearance for three different dose ranges is modeled as an enzyme reaction. Model parameters are optimized and Monte-Carlo analysis is performed to robustly quantify parameter estimation, variance and covariance with other parameters in the presence of noisy data..

fig 1

Description

 This is an enzyme conversion model for salicylic acid clearance
 simultaneously fitting three independent data sets using shared parameters.
 The initial concentrations of salicylic acid range over almost two orders of
 magnitude.


         kon1->        koff2->     Gp->
  LSA+LE<-----> LSAE <-----> LE+LP-----> (Low Dose)
         <-koff1        <-kon2


         kon1->        koff2->     Gp->
  MSA+ME<-----> MSAE <-----> ME+MP-----> (Mid Dose)
         <-koff1        <-kon2


         kon1->        koff2->     Gp->
  HSA+HE<-----> HSAE <-----> HE+HP-----> (Hi Dose)
         <-koff1        <-kon2

    koff1=KD1*kon1   koff2=KD2*kon1

 where LSA, MSA, and HSA are Salicylic Acid concentrations,
 HE, ME, and HE are the free enzyme concentrations,
 LSAE, MSAE, and HSAE are salicylic acid-enzyme complex concentrations, and
 LP, MP, and HP are the product concentrations.

The parameters kon1, koff2, koff1, kon2, Gp, and the total amount of enzyme
are the same for all three models.

Equations

     Algebraic Equations

e0

e1

     Ordinary Differential and Mass Balance Equations

e2

e3

e4

e5



e6

e7

e8

e9



e10

e11

e12

e13



     Initial Conditions

e14 , e15 , e16 .

e17 , e18 , e19 .

The equations for this model may be viewed by running the JSim model applet and clicking on the Source tab at the bottom left of JSim's Run Time graphical user interface. The equations are written in JSim's Mathematical Modeling Language (MML). See the Introduction to MML and the MML Reference Manual. Additional documentation for MML can be found by using the search option at the Physiome home page.
