Models a capillary consisting of N compartments. Explores sensitivity analysis and optimization and details the Monte-Carlo GUI for robust estimates of parameters, confidence limits and covariance.

Description

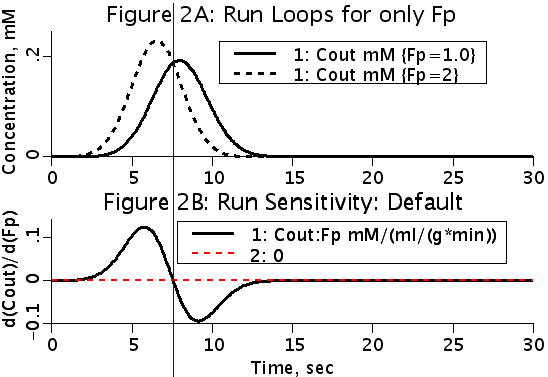

diagram 1



N compartments in series simulate a partial differential equation with convection and diffusion. The relative dispersion of N compartments in series is 1/sqrt(N). There is not an exact relationship between the diffusion coefficient and the relative dispersion in the partial differential equation for diffusion and convection in a bounded domain with inflow and outflow at the ends. This model explores sensitivity analysis and optimization in a guided exercise. Details for using the Monte-Carlo graphical user interface are included both from the main TABS, Top Left. The information is also repeated in the Notes (Run Time GUI, Bottom, Notes TAB).

Equations

     Ordinary Differential Equations

e0 ,   and for j=2..N:

e1 .

     Initial Conditions

e2   for j=1..N.

The equations for this model may be viewed by running the JSim model applet and clicking on the Source tab at the bottom left of JSim's Run Time graphical user interface. The equations are written in JSim's Mathematical Modeling Language (MML). See the Introduction to MML and the MML Reference Manual. Additional documentation for MML can be found by using the search option at the Physiome home page.
