Model number
0102



Two compartment model with feedback control of precursor (pregnenolone) to cortisol and its adrenal secretion.

Description

 This two compartment model for substances, Q1 (precursor) and Q2 (cortisol)
 is simplified from the original models of Urquhart (1968) by Jacquez (1972).
 Precursor Q1 is formed at a rate inhibited by itself at higher concentrations.
 Its conversion to cortisol is stimulated by ACTH, a saturable process. Increases
 in ACTH deplete PREG concentration and increase the secretion from the adrenal.


fig 1

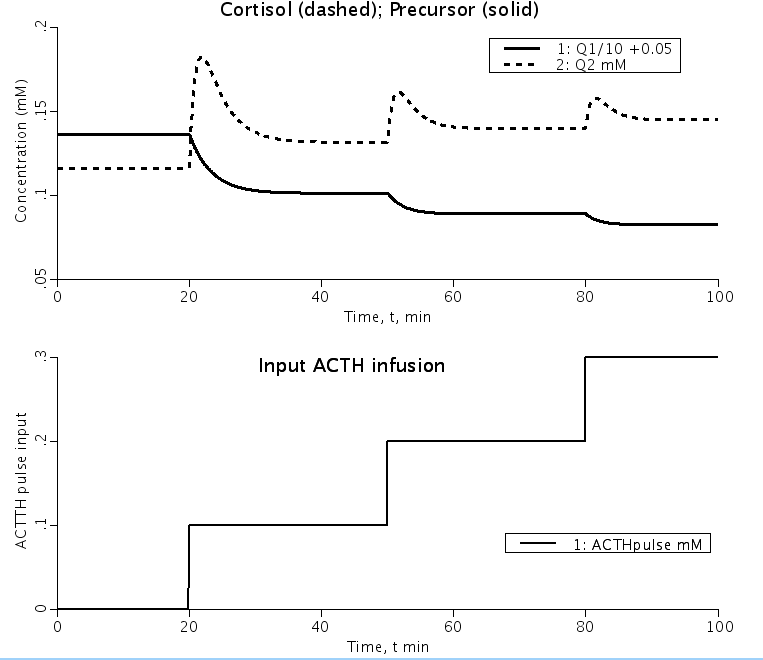

Figure: (Top) Concentration response of cortisol and precursor to ACTH infusion. Q1 is concentration of precurosr in compartment 1 and Q2 is cortisol concentration in compartment 2. (Bottom) ACTH input as a function of time.

Equations

The equations for this model may be viewed by running the JSim model applet and clicking on the Source tab at the bottom left of JSim's Run Time graphical user interface. The equations are written in JSim's Mathematical Modeling Language (MML). See the Introduction to MML and the MML Reference Manual. Additional documentation for MML can be found by using the search option at the Physiome home page.

Download JSim model project file

Help running a JSim model.

References
 Urquhart J and Li CC. The dynamics of adrenocortical secretion. Am J Physiol 214: 73-85, 1968.

 Jacquez JA. Compartmental analysis in biology and medicine.
  Kinetics of distribution of tracer-labeled materials. Amsterdam:
  Elsevier Publishing Co., 1972, pp.237 (See pp 213-216)

 Jacquez JA. Compartmental analysis in biology and medicine.
  3rd ed.. Ann Arbor, MI: BioMedware, 1996, 514 pp.



Key terms
compartment
tutorial
exchange
multiple compartments
flux
steady state
reaction
endocrine
ACTH
adrenal
cortisone
cortisol
control system
secretion
feedback
step response
mathematical model
analog computer
